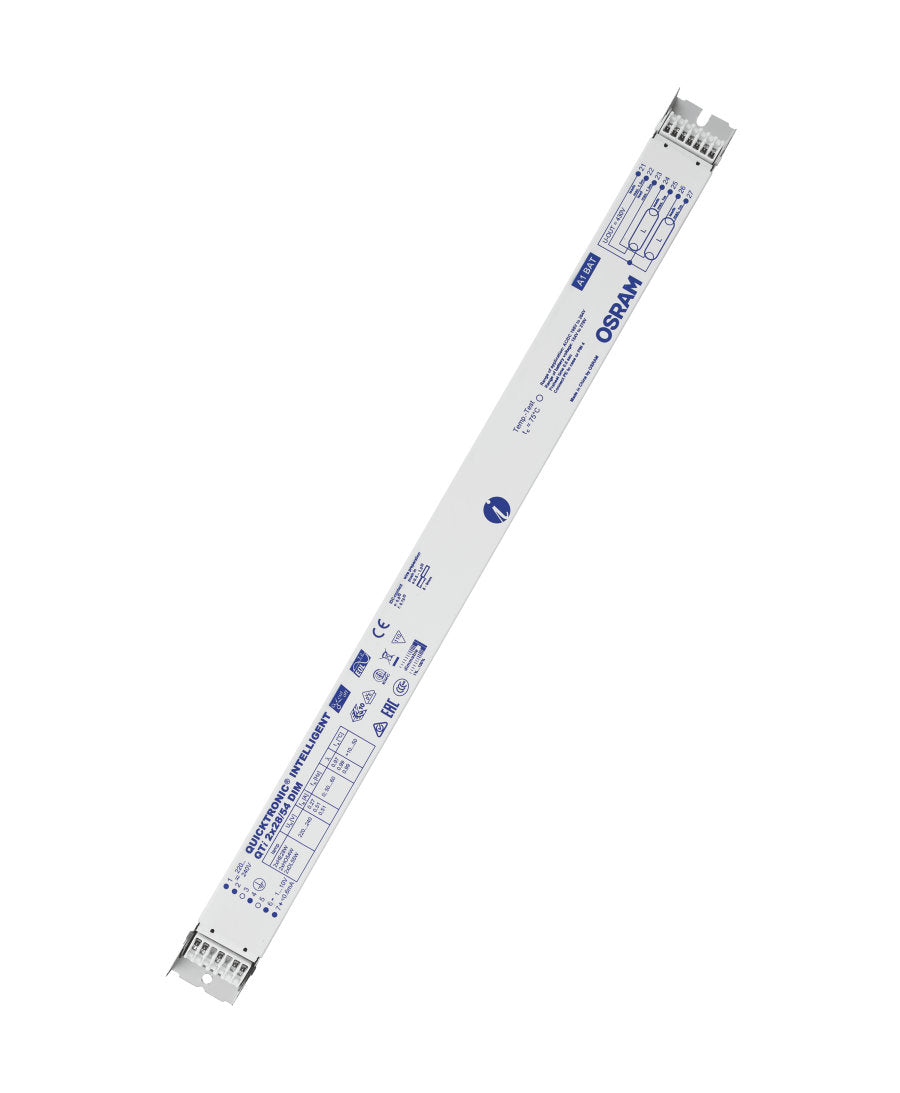

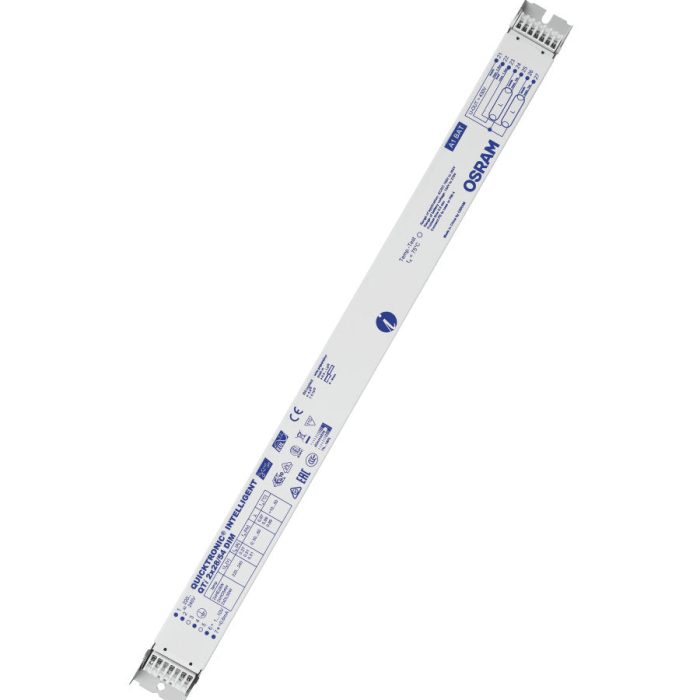

2 x28 54w Intelligent 1-10v Dimming Ballast – QTi 2X28 54 DIM – 4050300870717

echnical Data

Electrical data

Input voltage AC

198…264 V

Nominal voltage

220…240 V

Mains frequency

50…60 Hz

Input voltage DC

154…276 V

Maximum output power

2 x 49 W

Efficiency in full-load

93 %

Operating frequency

44…120 kHz

Max. ECG no. on circuit breaker 10 A (B)

8

Max. ECG no. on circuit breaker 16 A (B)

13

Inrush current

45 A

Light technical data

Starting time

0.6 s

Dimensions & weight

Length

423.0 mm

Width

30.0 mm

Height

21.0 mm

Mounting hole spacing, length

415.0 mm

Product weight

373.00 g

Cable cross-section, output side

0.5…1.5 0.5…1.0 mm²

Cable cross-section, input side

0.5…1.5 0.5…1.0 mm²

Temperatures & operating conditions

Ambient temperature range

+10…+50 °C

Permitted rel. humidity during operation

5…85 %

Lifespan

ECG lifetime

100000 h

Additional product data

Suitable for lamp power (2 lamps)

28…54 W

Capabilities

Dimming interface

1…10 V

Dimming range

1…100 %

Dimmable

Yes

Overheating protection

Power reduction and switch off at T > 75 °C at the tc point

Suitable for fixtures with prot. class

I

End of lamp life safety shutdown

EOL T.2

Intended for no-load operation

No

Max. cable length to lamp LED module

1.0 m 1.5 m

Certificates & standards

Approval marks – approval

VDE VDE-EMC EL EAC RCM CCC

Standards

Acc. to EN 61347-2-3 Acc. to EN 60929 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547

Protection class

III

Type of protection

IP20

EEI – Energy Label

A1 BAT

Logistical data

Commodity code

850410809000

Environmental information

Date of Declaration

10-11-2021

Primary Article Identifier

4050300870717

Candidate List Substance 1

Lead

CAS No. of substance 1

7439-92-1

Safe Use Instruction

The identification of the Candidate List substance is sufficient to allow safe use of the article.
