Product on sale

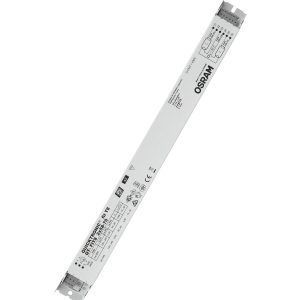

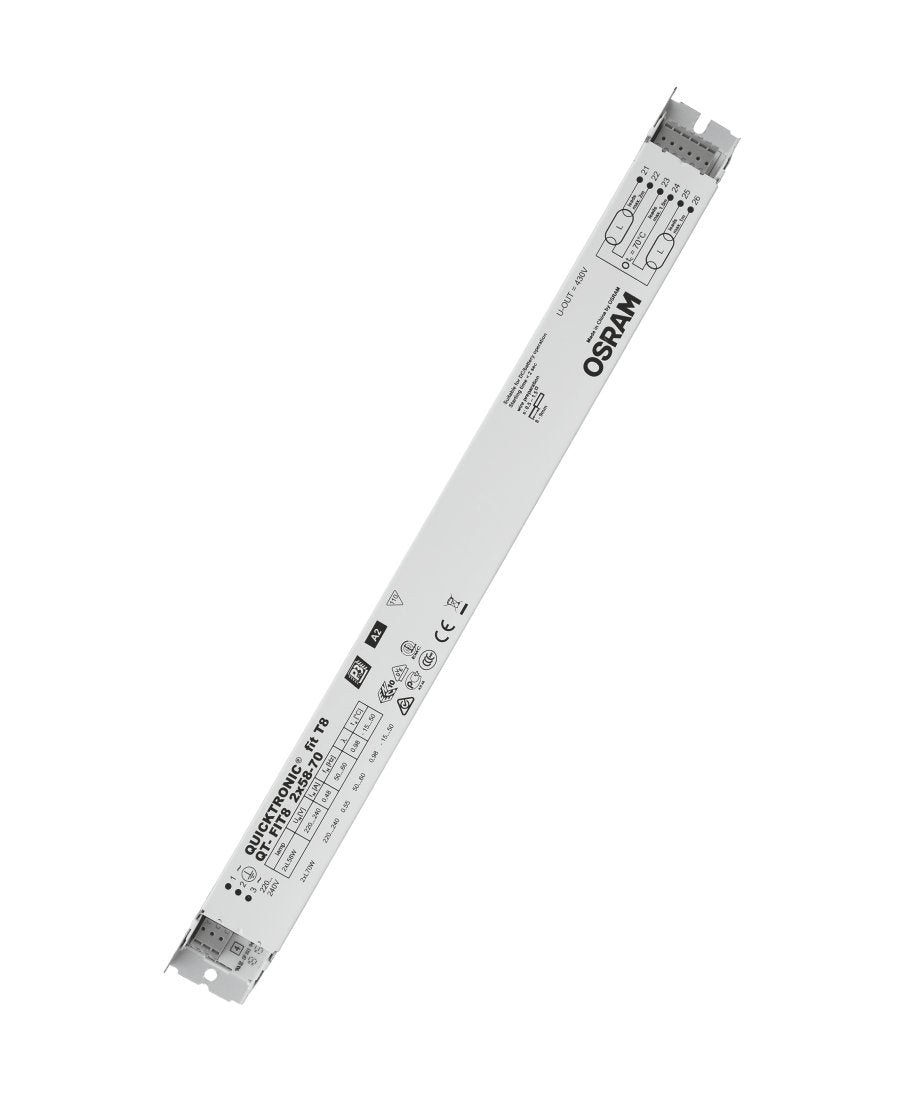

Osram QT-FIT8 2X58…70 For Discount

$9.07

24 people are viewing this right now
6 products sold in last 6 hours
Selling fast! Over 8 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
Product family benefits

  • Long lamp life
  • No adverse effect from frequent on off switching
  • Automatic restart after lamp replacement
  • Perfect lamp start for applications with motion sensors
  • VDE VDE EMC certified system
  • Very high energy efficiency due to cut-off technology
    • Areas of application

      • Open-plan offices, corridors and storage rooms
      • Public buildings
      • Strip lighting
      • Suitable for emergency lighting (DC operation)
      • Suitable for luminaires of protection class I

      • Technical Data

        Electrical data

        Input voltage AC

        198…264 V

        Nominal voltage

        220…240 V

        Mains frequency

        50…60 Hz

        Input voltage DC

        185…264 V

        Maximum output power

        2 x 70 W

        Efficiency in full-load

        91 %

        Operating frequency

        40…50 kHz

        Max. ECG no. on circuit breaker 10 A (B)

        8

        Max. ECG no. on circuit breaker 16 A (B)

        13

        Inrush current

        15 A

        Light technical data

        Starting time

        2.0 s

        Dimensions & weight

        Length

        360.0 mm

        Width

        30.0 mm

        Height

        28.0 mm

        Mounting hole spacing, length

        350.0 mm

        Product weight

        264.00 g

        Cable cross-section, output side

        0.5…1.5 mm²

        Cable cross-section, input side

        0.5…1.5 mm²

        Temperatures & operating conditions

        Ambient temperature range

        -15…+50 °C

        Permitted rel. humidity during operation

        5…85 %

        Lifespan

        ECG lifetime

        50000 h

        Additional product data

        Suitable for lamp power (2 lamps)

        58…70 W

        Capabilities

        End of lamp life safety shutdown

        EOL T.2

        Suitable for fixtures with prot. class

        I

        Max. cable length to lamp LED module

        2.0 m 1.0 m

        Intended for no-load operation

        No

        Dimmable

        No

        Certificates & standards

        Approval marks – approval

        VDE VDE-EMC ENEC 10 CE

        EEI – Energy Label

        A2

        Standards

        Acc. to EN 61347-2-3 Acc. to EN 60929 Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547

        Type of protection

        IP20

        Protection class

        I

        Logistical data

        Commodity code

        850410809000

        Environmental information


        Information according Art. 33 of EU Regulation (EC) 1907 2006 (REACh)

        Date of Declaration

        13-02-2022

        Primary Article Identifier

        4052899151932

        Candidate List Substance 1

        Lead

        CAS No. of substance 1

        7439-92-1

        Safe Use Instruction

        The identification of the Candidate List substance is sufficient to allow safe use of the article.

        Declaration No. in SCIP database

        59247456-2dea-40a9-b909-81746510b756

        Packaging information

        EAN

        Unit

        Piece

        Dimension l x w x h

        Weight

        Volume
        4052899151932

        		 UNV

        		 1

        		 360mm x 30mm x 28mm

        		 264.00g

        		 0.30dm³
        4052899151949

        		 VS

        		 20

        		 383mm x 159mm x 132mm

        		 5442.00g

        		 8.04dm³
