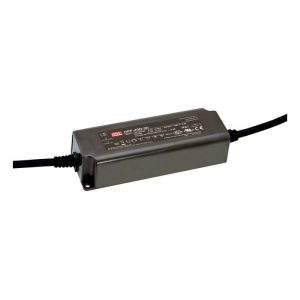

NPF-40D-S – Mean Well NPF-40D Series IP67 Rated Dimmable LED Driver 0.76-3.34A 40-41W Online

Fully encapsulated with IP67 levelProtections: Short circuit Over Current Over voltage Over temperatureOther features:Built-In 3 in 1 dimming function (0-10Vdc or PWM signal or resistance)Universal AC input (up to 305VAC) Full RangeHigh efficiency up to 91%Cooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGClass 2 power unitSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

40

Output Voltage

Choose Option

Dimensions

150x 53x 35

EMC Standards

Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A.

Input Voltage

90-305VAC

Safety Standards

UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1

Output Voltage Options

Single

Working Temperature

-40-+80°C

PDF Datasheet

NPF-40D-spec.pdf
