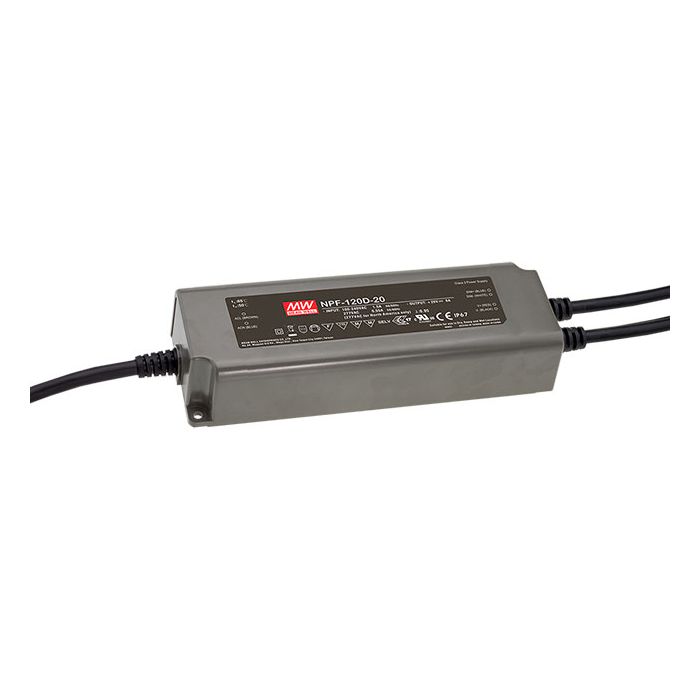

NPF-120D-42 – Mean Well LED Driver NPF-120D-42 Series 2.9A 121.8W Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Fully encapsulated with IP67 levelProtections: Short circuit Over Current Over voltage Over temperatureOther features:Universal AC input (up to 305VAC) Full RangeHigh efficiency up to 90.5%Cooling by free air convectionBuilt-in active PFC functionFully isolated plastic caseClass II power unit, no FGSuitable for dry, damp, wet locationNo load power consumption <0.15W5 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
121
Output Voltage
42V
DC Output Adjustment
25.2-42V
Dimensions
191x 63x 37.5
EMC Standards
Compliance to EN55015, EN61000-3-2 Class C (>60% load) ; EN61000-3-3, Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547, light industry level(surge 2KV), criteria A.
Input Voltage
90-305VAC
Safety Standards
UL8750, CSA C22.2 No. 250. 13-12, ENEC EN61347-1, EN61347-2-13, EN62384 independent, IP67 approved; Design refer to EN60335-1
Output Voltage Options
Single
Working Temperature
-40-+80°C
PDF Datasheet
NPF-120D-spec.pdf
