MINI JOLLY DALI 20 125403 Online Hot Sale
22 people are viewing this right now
16 products sold in last 8 hours
Selling fast! Over 14 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
FEATURES
Rated Voltage
110…127 V
220…240 V
Constant Current
Current
250 mA
220-240 V = Output power
10 W
110-127 V =
10 W
Current
350 mA
220-240 V = Output power
15 W
110-127 V =
15 W
Current
400 mA
220-240 V = Output power
17 W
110-127 V =
15 W
Current
450 mA
220-240 V = Output power
19 W
110-127 V =
15 W
Current
500 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
550 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
600 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Current
700 mA
220-240 V = Output power
20 W
110-127 V =
15 W
Constant Voltage (LED STRIP)
Dimming:
DALI-1
Additional technical features:
RIPPLE FREE
ACTIVE PFC (pf>0.9)
SELV <>
DIMMING: PWM
WIDE RANGE INPUT VOLTAGE
EXTERNAL NTC INPUT
Approvals:
KEMAKEUR, ENEC, UL (class 2), CCC, RCM, CE, EAC, IRAM, UKCA
Plastic case:
IP 20 (Independent Use)
Minimum cut-out hole diameter:
55 mm

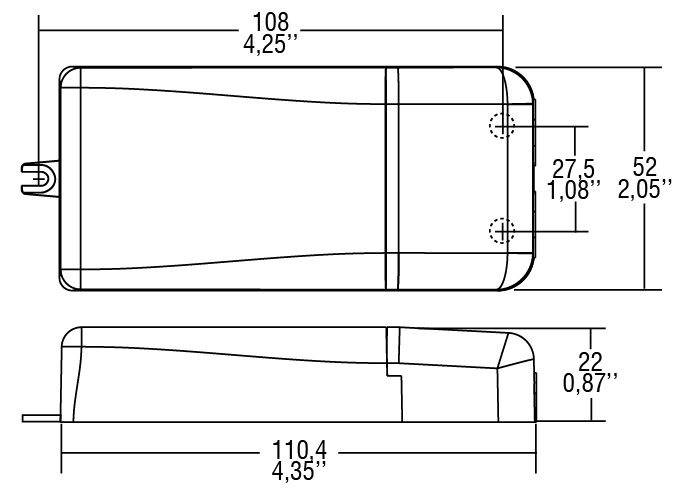

Size:
111 x 22 x 52 mm
Features
• Multipower driver supplied with dip-switch for the selection of the output current.
• IP20 independent driver, for indoor use.
• Class II protection against electric shock for direct or indirect contact.
• Driver for built-in use (DC MINI JOLLY DALI BI).
• It can be used for lighting equipment in protection class I and II (DC MINI JOLLY DALI BI).
• IP00, creepage distances and clearances rely on the final application according to IEC EN 60598-1 (DC MINI JOLLY DALI BI).
• Active Power Factor Corrector.
• Analogical input (NTC) for thermal sensor connection.
• Current regulation ±5 % including temperature variations.
• Input and output terminal blocks on the same side (wire cross-section up to 1,5 mm2 AWG15).
• Clamping screws on primary and secondary circuits for cables with diameter: PRI 5-8 mm SEC 3-5 mm.
• Protections: – against overheating and short circuits; – against mains voltage spikes; – against overloads.
• Thermal protection = C.5.a
Title
