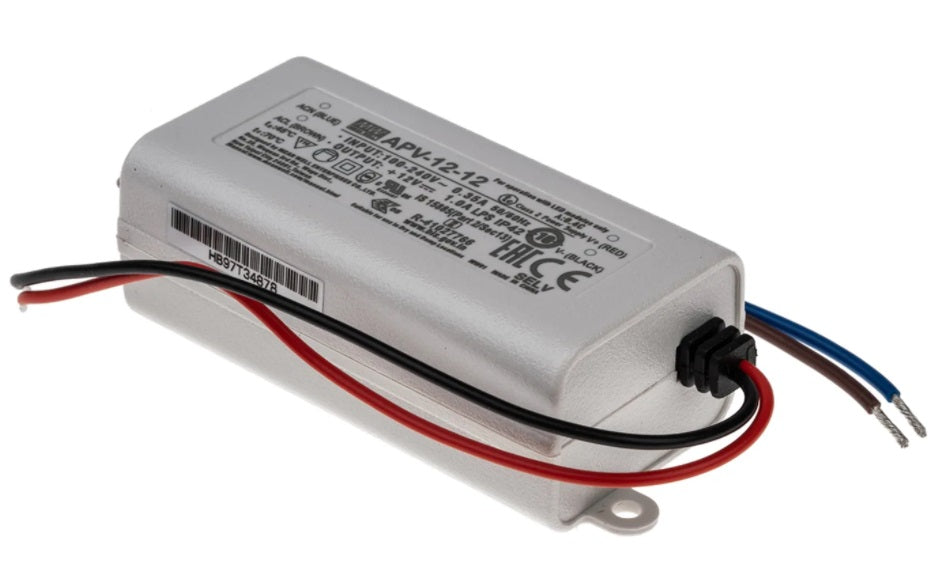

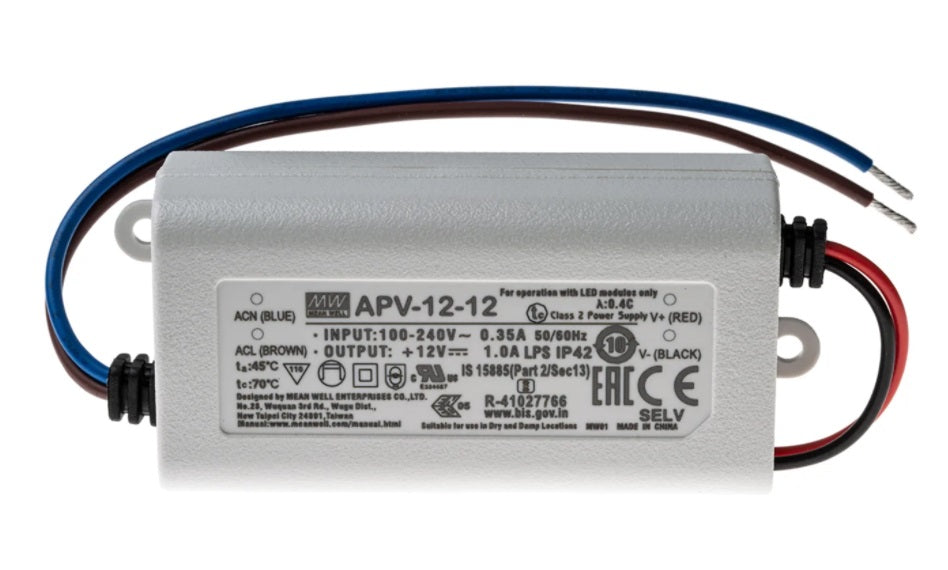

Mean Well 12W and 16W Constant Voltage LED Driver Power Supply – APV Series
APV series 12W and 16W constant voltage LED driver power supply with universal AC input. These low cost, highly reliable LED drivers power supplies have a fully isolated plastic case and suitable uses include LED lighting and moving sign applications.
Full range universal AC input
Small, compact, fully isolated plastic case
Free air convection cooling
100% full load burn-in test
Short circuit, overload and over voltage protection
Pass LPS
EMC compliance to EN55022 (CISPR22) Class B, EN55015, EN61547
Harmonic current compliance to EN61000-3-2 Class A, EN61000-3-3
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125 2009.
MTBF to MIL-HDBK-217F
12W versions: Derate output above 40°C
16W versions: Derate output above 40°C
Standards
Design refer to TUV EN60950-1, EN61347-2-13, UL8750
