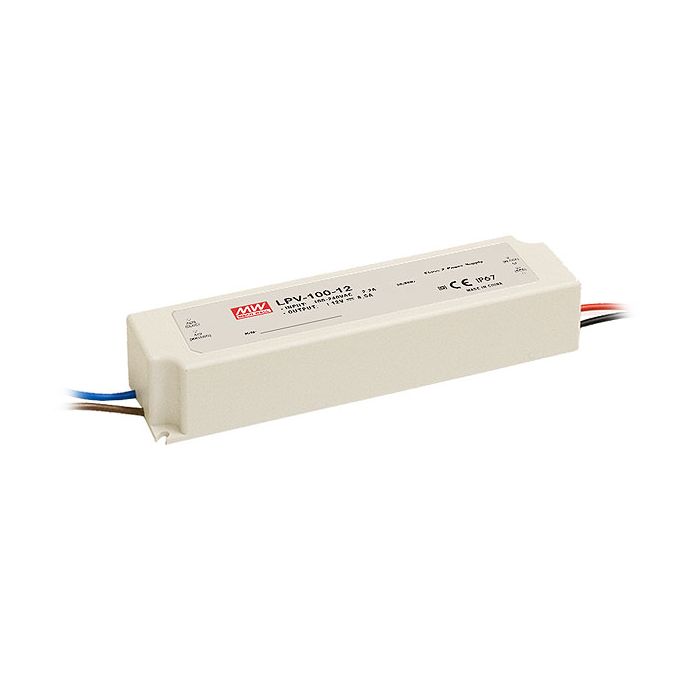

LPV-100-S – Mean Well LPV-100 Series LED Driver 60W – 100W 5V – 48V Supply

Constant Voltage
Fully encapsulated with IP67 level
Protections: Short circuit Overload Over voltage
Other features:

Universal AC input Full Range
Isolation class II, no F.G.
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
100% full load burn-in test
Low cost, High reliability
2 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

100

Output Voltage

Choose Option

Dimensions

190 x 52 x 37

EMC Standards

EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage

90~264VAC

Safety Standards

Design refer to TUV EN60950-1, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-30°C~+70°C

PDF Datasheet

LPV-100-spec.pdf
