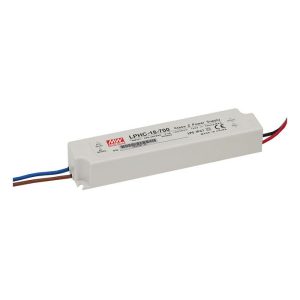

LPHC-18-S – Mean Well LPHC Series IP67 Rated LED Driver 18W 350mA – 700mA Online now

Constant CurrentFully encapsulated with IP67 levelProtections: Short circuit Overload Over voltage Over temperature  Other features:180~264VACIsolation class II, no F.G.Cooling by free air convectionClass 2 power unitPass LPS100% full load burn-in testLow cost, high reliability2 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

18

Output Current

Choose Option

Dimmable (Type)

No

Output Voltage Range (V)

6~25

Dimensions

140 x 30 x 20

EMC Standards

EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11

Input Voltage

180~264VAC

Safety Standards

Design refer to UL1310, EN60950-1, EN61347-2-13

Output Voltage Options

Single

Working Temperature

-20~+70°C

PDF Datasheet

LPHC-18-SPEC.PDF
