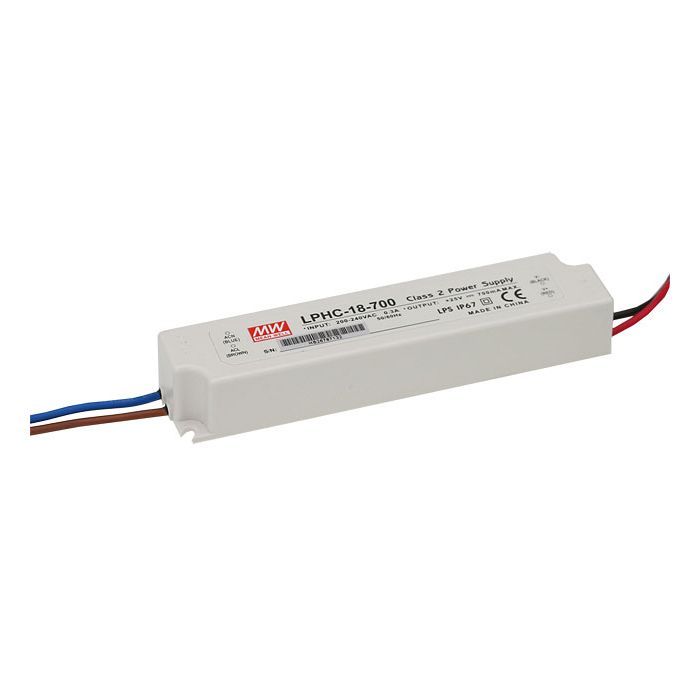

LPHC-18-700 – Mean Well LED Driver LPHC-18-700 18W 700mA Supply

Constant CurrentFully encapsulated with IP67 levelProtections: Short circuit Overload Over voltage Over temperature  Other features:180~264VACIsolation class II, no F.G.Cooling by free air convectionClass 2 power unitPass LPS100% full load burn-in testLow cost, high reliability2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
18

Output Current
700mA

Dimmable (Type)
No

Output Voltage Range (V)
6~25

DC Output Adjustment
6-25V

Dimensions
140 x 30 x 20

EMC Standards
EN55022 class A, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11

Input Voltage
180~264VAC

Safety Standards
Design refer to UL1310, EN60950-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-10~+60°C

PDF Datasheet
LPHC-18-SPEC.PDF
