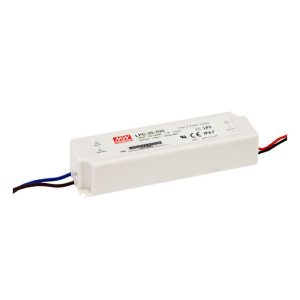

LPC-35-1400 – Mean Well LED Driver LPC-35-1400 34W 1400mA Online

Constant CurrentFully encapsulated with IP67 levelProtections: Short circuit Overload Over voltage Other features:Universal AC input Full rangeWithstand 300VAC surge input for 5 secondsIsolation class II, no F.G.Cooling by free air convectionClass 2 power unitPass LPS100% full load burn-in testLow cost, high reliability2 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
34

Output Current
1400mA

Dimmable (Type)
No

Output Voltage Range (V)
9~24

Dimensions
148 x 40 x 30

EMC Standards
EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2, 3, 4, 5, 6, 8, 11

Input Voltage
90~264VAC

Safety Standards
UL1310, UL879 approved; Design refer to TUV EN60950-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+70°C (refer to output derating curve)

PDF Datasheet
LPC-35-spec_2.pdf
