IM INTEGRATED MODULE

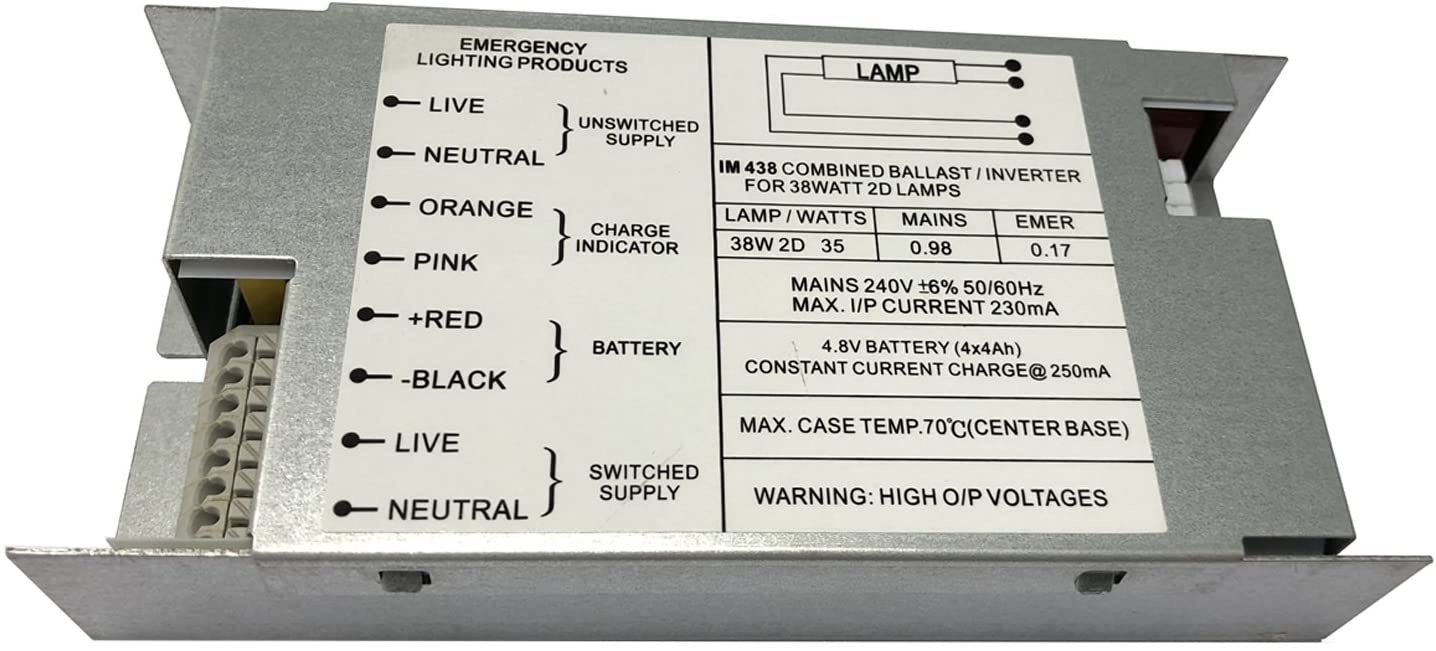

The Integrated Modules incorporate a high quality electronic ballast and an emergency lighting inverter within the same enclosure. The module should be connected to a permanent 230Volt supply to charge the Nickel Cadmium or Nickel Metal Hydride batteries. A second switched mains supply then provides normal lighting. In the event of a failure of the permanent supply the lamp continues to operate from the battery. There are two physically different modules. One is ideally suited to the wide range of circular and square compact fluorescent luminaires which utilise the 28Watt or 38Watt 2D lamps. The second is designed to fit in the gearbox associated with compact fluorescent downlights. There are different calibrations for various lamp wattages but in all cases the circuits are designed to generate less heat than standard fluorescent control gear helping to maintain optimum battery temperatures within the small enclosures. 2D VERSIONS IM Integrated Modules are suitable for operation of all 16 – 38Watt 2D lamps including T5 and Amalgam. GENERAL SPECIFICATION Supply voltage 230V (220-240V) ~ 50Hz Input current 230mA (max.) Battery 4Ah NiCd or NiMH Duration 3hrs (4Ah) Limiting case temp. 70°C centre of base BALLAST LUMEN FACTORS Lamp Mains Emergency  IM438 38W 2D 30W 0.80 0.15 30 150 72 IM Modules for 2D lamps Fixing Centres 144mm
