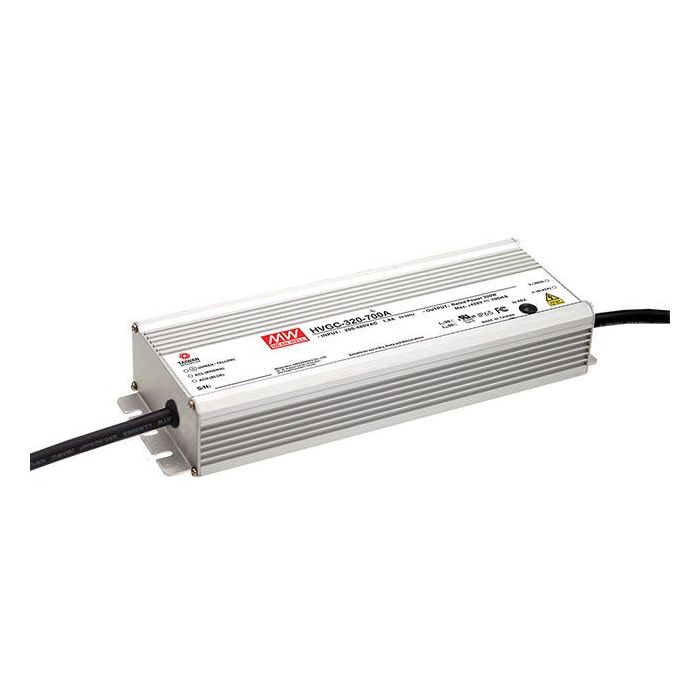

HVGC-320-BS – Mean Well HVGC-320 Series LED Driver 300-320W 700-2500mA Hot on Sale

Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit Over current Over voltage Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

320

Output Current

Choose Option

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

262x 90x 43.8 (LxWxH) mm

EMC Standards

Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV) Criteria A

Safety Standards

UL8750, CSA C22.2 No. 250. 13-12, IP65 or IP67 approved

Output Voltage Options

Single

Working Temperature

-40~+90C

PDF Datasheet

HVGC-320-spec.pdf
