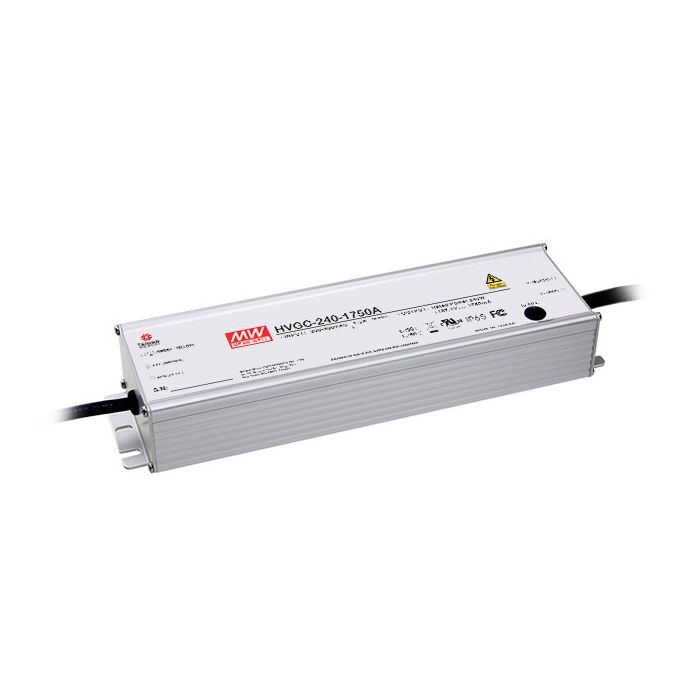

HVGC-240-S – Mean Well HVGC-240 Series LED Driver 240W 350mA – 1400mA Discount

Wide input range 180~528VACHigh efficiency up to 91%Built-in active PFC functionProtections: Short circuit Over current Over voltage Over temperatureOther features:Constant current designCooling by free air convectionOutput voltage and CC level can be adjusted through internal potentiometerIP65 design for indoor or outdoor installationsSuitable for LED lighting and street lighting applicationsCompliance to worldwide safety regulations for lightingSuitable for dry damp wet locations5 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

240

Output Current

Choose Option

Dimmable (Type)

1-10VDC, PWM signal, resistance

Dimensions

254.2x 68x 38.8

EMC Standards

Compliance to FCC Part 15 Subpart B, EN61000-4-2,3,4,5,6,8,11, EN61547, light industry level (Surge immunity Line-Earth 4KV, Line-Line 2KV)

Input Voltage

180~528VAC 254VDC~747VDC

Safety Standards

UL8750 (type “HL”), CSA C22.2 No. 250. 13-12, IP65 or IP67 approved

Output Voltage Options

Single

Working Temperature

Tcase=-40~+90?C (Refer to Derating Curve )

PDF Datasheet

HVGC-240-spec.pdf
