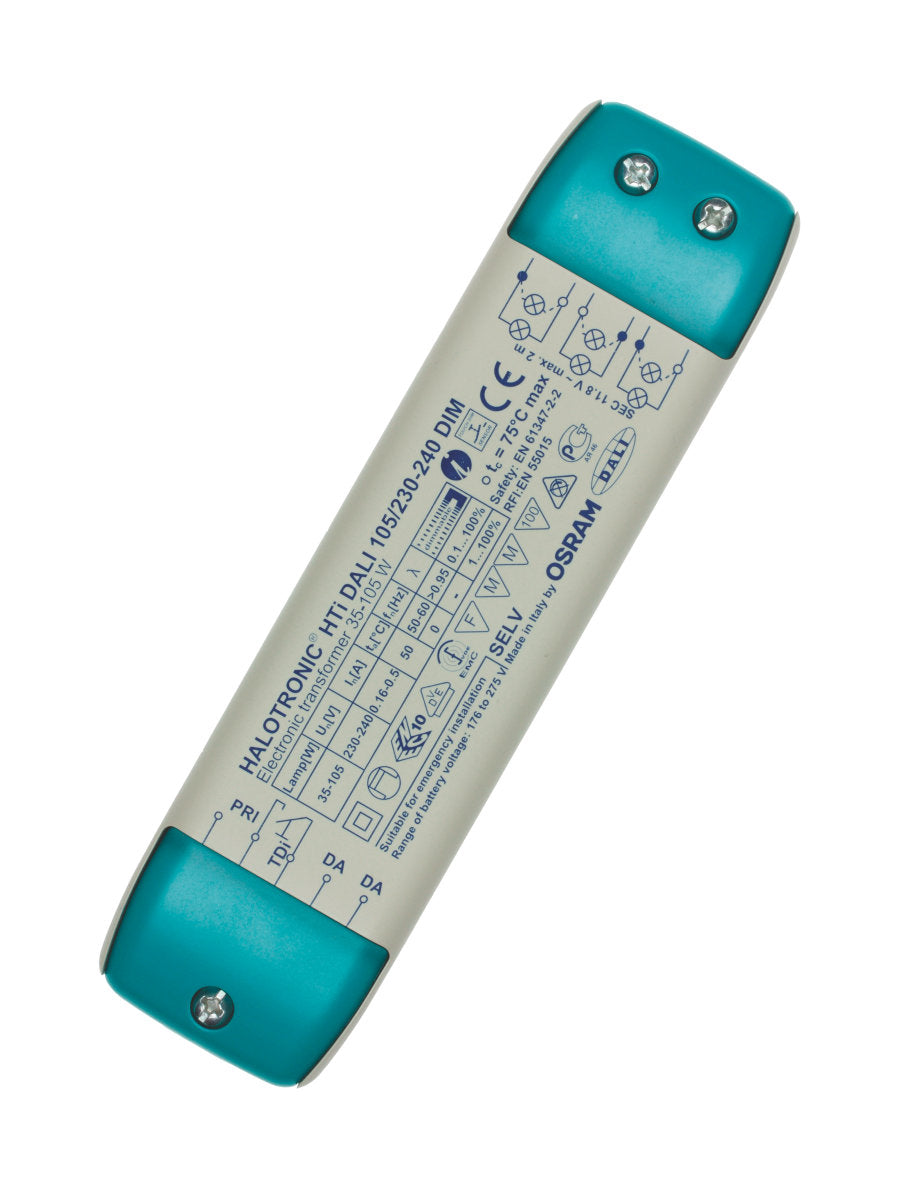

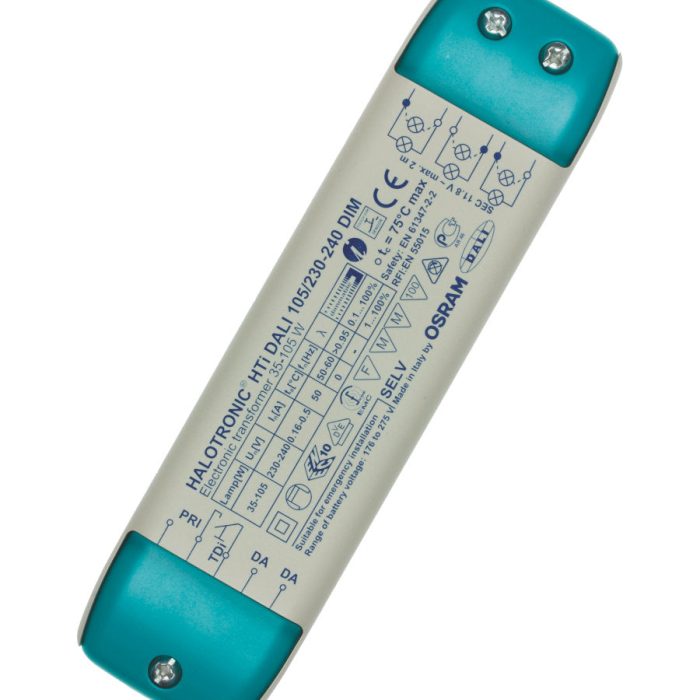

HTI DALI 105 230…240 DIM Cheap

$47.39

30 people are viewing this right now
8 products sold in last 2 hours
Selling fast! Over 16 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout
Product family benefits

  • Very low power consumption thanks to high efficiency
  • Through-wiring possible on the primary side
  • Large temperature range
  • Protective operation throughout the entire partial-load range for long lamp life
    • Areas of application

      • Effect and accent lighting
      • Living rooms
      • Object lighting
      • Conference rooms
      • Restaurants
      • Recessed and surface-mounted ceiling luminaires
      • Shop lighting
      • Event rooms

        • Technical Data

          Electrical data

          Lamp wattage

          35…105 W

          Maximum output power

          105 W

          Line current

          0.45 A

          Input voltage DC

          176…275 V

          Nominal voltage

          230…240 V

          Power factor λ

          0.95

          Operating frequency

          40 kHz

          Nominal output voltage

          11.6 11.4 V

          Mains frequency

          50…60 Hz

          System wattage

          108.00 W

          Efficiency in full-load

          95 %

          Max. ECG no. on circuit breaker 10 A (B)

          23

          Galvanic isolation primary secondary

          4.00 kV

          Max. ECG no. on circuit breaker 16 A (B)

          38

          Networked standby power

          0.50 W

          Inrush current

          0.6 A

          Dimensions & weight

          Length

          170.0 mm

          Width

          44.0 mm

          Height

          34.0 mm

          Wire preparation length, input side

          8.0 mm

          Wire preparation length, output side

          8.0 mm

          Mounting hole spacing, length

          140.0 mm

          Product weight

          160.00 g

          Temperatures & operating conditions

          Ambient temperature range

          -20…+50 °C

          Maximum temperature at tc test point

          75 °C

          Additional product data

          Design version

          Long with cable clamp

          Capabilities

          Dimming method

          Phase cut-off

          Dimming interface

          DALI or Touch DIM Touch DIM Sensor

          Overload protection

          Automatic reversible

          Overheating protection

          Automatic reversible

          Short-circuit protection

          Automatic reversible

          Max. cable length to lamp LED module

          2.0 m

          Cable wire types, input side

          H03VV-F 2×0.50 H03VV-F 2×0.75 H03VVH2-F 2×0.75 H05VVH2-F 2×0.75 H05VV-F 2×2.5 H05VV5G 1.5 NYM-O 2×1.5 NYM-J 3×1.5 NYM-J 5×1.5 mm²

          Cable wire types, output side

          H03VV-F 2×0.75 H05VV-F 2×0.75 H05VV-F 2×1.5 H05VV-F 2×2.5 NYM-J 3×1.5 NYM-J 3×2.5 NYM-O 2×1.5 mm²

          Dimmable

          Yes

          Dimming range

          0.1…100 %

          No-load proof

          Yes

          Intended for no-load operation

          No

          Certificates & standards

          Approval marks – approval

          E1 approval VDE VDE-EMC

          Standards

          Acc. to EN 55015:2006 + A1:2007 Acc. to EN 61000-3-2 Acc. to EN 61547 Acc. to EN 61347-2-2

          Type of protection

          IP20

          Logistical data

          Commodity code

          850440909000

          Environmental information

          Date of Declaration

          10-11-2021

          Primary Article Identifier

          4008321420633

          Candidate List Substance 1

          Lead

          CAS No. of substance 1

          7439-92-1

          Safe Use Instruction

          The identification of the Candidate List substance is sufficient to allow safe use of the article.
