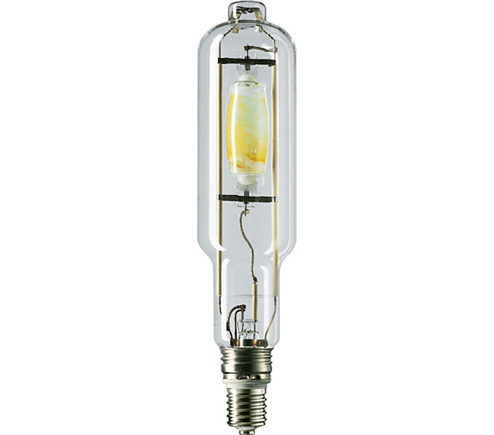

HPI-T HPI-T 2000W 542 E40 380V 1SL 4 Online

$114.62

24 people are viewing this right now
16 products sold in last 11 hours
Selling fast! 1 person has this in their cart
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Specifications

General information

Cap base
E40  [ E40]
Operating position
P20  [ Parallel + -20D or Horizontal(HOR)]
Life to 5% failures (nom.)
3000 h
Life to 10% failures (nom.)
5500 h
Life to 20% failures (nom.)
8000 h
Life to 50% failures (nom.)
12000 h
System description
High Output (HO)
Light technical

Colour Code
542  [ CCT of 4,200 K]
Luminous flux (rated) (min.)
180000 lm
Luminous flux (rated) (nom.)
200000 lm
Colour designation
Cool White (CW)
Lumen maintenance 10,000 hours (nom.)
75 %
Lumen maintenance 2,000 hours (nom.)
90 %
Lumen maintenance 5,000 hours (nom.)
80 %
Chromaticity coordinate X (nom.)
387
Chromaticity coordinate Y (nom.)
403
Correlated Colour Temperature (Nom)
3800 K
Luminous efficacy (rated) (nom.)
101 lm W
Colour rendering index (nom.)
59
Operating and electrical

Lamp supply voltage
380 V  [ 380]
Power (Rated) (Nom)
1980 W
Lamp current run-up (max.)
15.3 A
Lamp current (EM) (nom.)
9.1 A
Ignition peak voltage (max.)
5000 V
Ignition supply voltage (min.)
342 V
Ignition time (max.)
30 s
Voltage (Max)
247 V
Voltage (Min)
217 V
Voltage (Nom)
232 V
Controls and dimming

Dimmable
No

Mechanical and housing

Lamp Finish
Clear
Bulb shape
T100  [ T 100mm]
Approval and application

Mercury (Hg) content (nom.)
256 mg
Energy consumption kWh 1,000 hours
2178 kWh
Luminaire design requirements

Bulb temperature (max.)
600 °C
Cap-base temperature (max.)
300 °C
Cap-Base Temperature (Max)-DUP(do not use)
572 °F
Product data

Full product code
871150020235245
Order product name
HPI-T 2000W 542 E40 380V 1SL 4
EAN UPC – product
8711500202352
Order code
20235245
Local order code
4152000HPITN
SAP numerator – quantity per pack
1
Calculated local code description B2B
LAMPADA HALETO METALICO HPIT2000W-H
Numerator – packs per outer box
4
SAP material
928074209228
Net Weight (Piece)
586.000 g
ILCOS code
MT-2000 42 2B-H-E40- H
