Product on sale

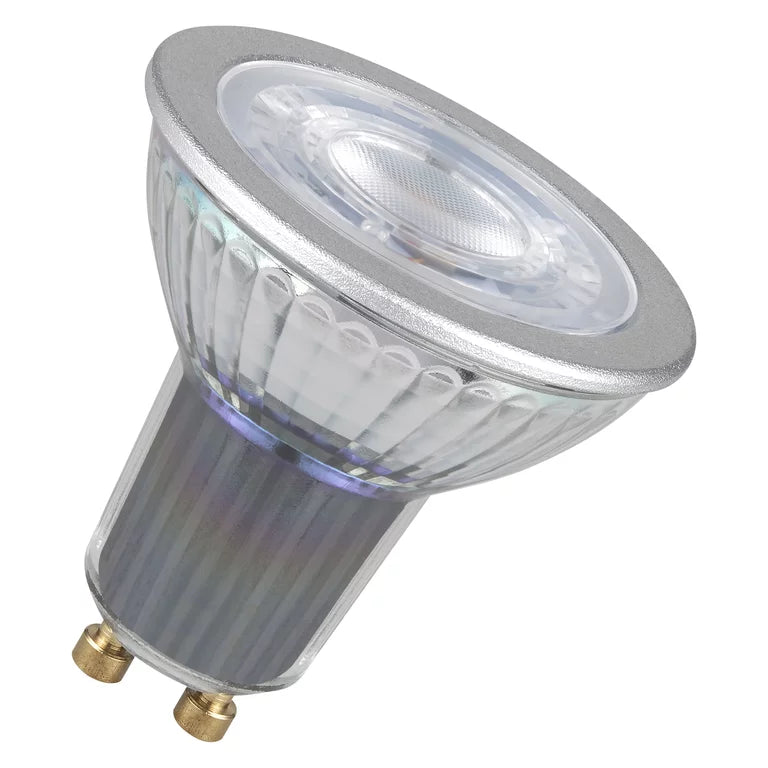

High Lumen PAR16 DIMMABLE GU10 100 36 ° 9.6 W 2700k 3000k 4000 K GU10 750 Lumens Sale
29 people are viewing this right now
8 products sold in last 19 hours
Selling fast! Over 4 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Product benefits
- Quick, simple and safe replacement without rewiring
-
- Design, dimensions, luminous flux comparable to an incandescent or halogen lamp
-
- Low maintenance costs thanks to long lifetime
-
- No UV and near-IR radiation in the light beam
-
- Stepless dimming
-
- Very high dimmer compatibility, see also www.ledvance.com dim
-
- Instant 100 % light, no warm-up time
-
ELECTRICAL DATA
Nominal wattage
9.6 W
Construction wattage
9.60 W
Nominal voltage
220…240 V
Claimed equiv. conventional lamp power
100 W
Nominal current
52 mA
Type of current
AC
Inrush current
0.8 A
Operating frequency
50 60 Hz
Mains frequency
50 60 Hz
Max. lamp no. on circuit break. 10 A (B)
144
Max. lamp no. on circuit break. 16 A (B)
231
Power factor λ
0.70
PHOTOMETRICAL DATA
Luminous intensity
1100 cd
Luminous flux
750 lm
Nominal useful luminous flux 90°
750 lm
Luminous efficacy
78 lm W
Lumen main.fact.at end of nom.life time
0.70
Light color (designation)
Cool White
Color temperature
4000 K
Color rendering index Ra
80
Light color
840
Standard deviation of color matching
≤5 sdcm
Rated peak intensity
1100 cd
Rated LLMF at 6,000 h
0.80
LIGHT TECHNICAL DATA
Beam angle
36 °
Warm-up time (60 %)
‹ 0.50 s
Starting time
< 0.5 s
Rated beam angle (half peak value)
36.00 °
DIMENSIONS & WEIGHT
Overall length
52.00 mm
Diameter
50.00 mm
Maximum diameter
50 mm
Product weight
56.00 g
TEMPERATURES & OPERATING CONDITIONS
Ambient temperature range
-20…+40 °C
Maximum temperature at tc test point
115 °C
LIFESPAN
Lifespan
25000 h
Number of switching cycles
100000
Lumen maintenance at end of serv
0.70
Rated lamp survival factor at 6,000
≥ 0.90
ADDITIONAL PRODUCT DATA
Base (standard designation)
GU10
Mercury content
0.0 mg
Mercury-free
Yes
Product remark
All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value
CAPABILITIES
Dimmable
Yes
CERTIFICATES & STANDARDS
Energy efficiency class
A+ 1)
Energy consumption
10.00 kWh 1000h
Type of protection
IP20
Standards
CE, EAC
Photobiological safety group acc. to EN62778
RG1
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
COUNTRY-SPECIFIC CATEGORIZATIONS
Order reference
LPPR16D10036 9,
ENERGY LABELLING REGULATION DATA ACC EU 2019 2015
Light source cap-type (or other electric interface)
GU10
Length
52.00 mm
Height
50.00 mm
Width
50.00 mm
Colour Please Select
2700K, 3000K, 4000K
