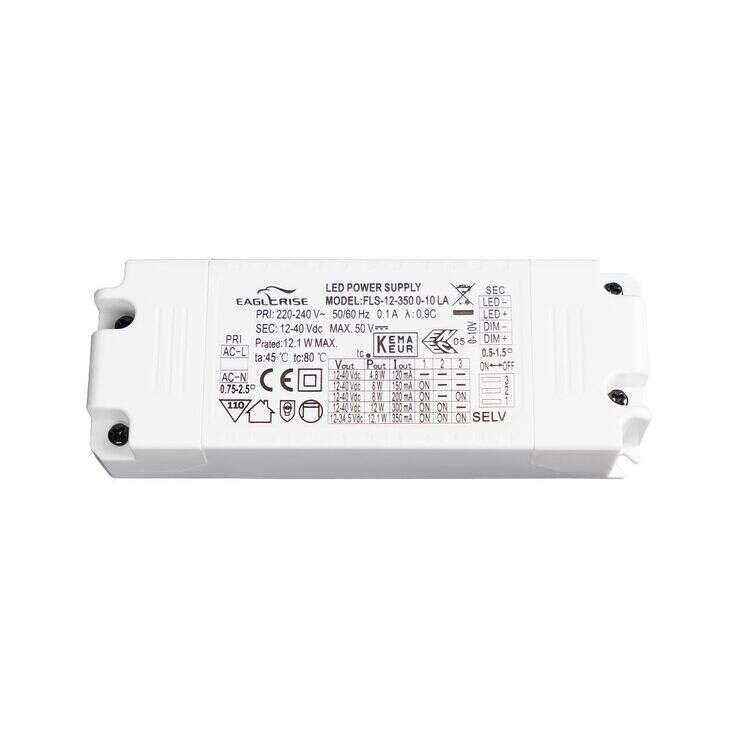

FLS-12-350 0-10 LA 0-10V Dimmable Constant Current LED Drivers For Cheap

This item is no longer available please call for alternatives

FLS-12-350 0-10 LA Features:

Constant current design

Input Voltage 220-240VAC

Other features:

• Protections: short circuit over load over voltage
• IP20 Ingress protection
• Power Factor b %0.9
• Efficiency b %80%
• Class II, SELV
• 0-10V dimmable
• Current ADJ. by dip-switch
• 5 years warranty

• ■Specification Input Rated input voltage 220-240VAC Range of input voltage 176-264VAC DC voltage range 176-280V Frequency(Hz) 0 50 60 Hz Power Factor 0.9C@220-240VAC, full load Input Current max 0.1A MAX. @Full Load,176VAC Start-up time ＜0.5S Unload Power Consumption ≤0.5W Inrush Current 10A Max. THD 10% Typ. Leakage Current ＜0.5mA(240VAC) Output Constant Current Max. 350mA Unload voltage Max. 50 VDC Voltage Range(VDC) 12-40VDC Rated power 12.1W Max. Current Accuracy ±5% (±8% for Io≤200mA) Voltage Regulation ±5% @Full Load Load Regulation ≤5% Hold-up Time 1s max.@Full Load Ripple& Noise *Note.2 ≤21mAp-p@Full Load,240VAC Efficiency(Typ.) ≥80% Dimming Dimmable YES Dimming mode 0-10V Dimming current range 5%~100% Protection Over Load Protection 103-120% Protection type: Auto Resume Over Voltage Protection ＞50VDC Protection type: Auto Resume Short circuit Protection Protection type: Auto Resume Environment Operating Temperature -20℃…+45℃ tc 80℃ Storage Temperature -25℃…+60℃ Life time ＞30,000h@45℃ Humidity 20%-95%RH Others Dimension 125X45X27.5(LXWXH)mm Weight 0.1kg PC Safety & EMC Safety standards EN 61347-1; EN61347-2-13; EN62384 Withstand voltage Input-Output：3750V 5mA 1min Isolation resistance Input-Output：≥4MΩ@500VDC EMI EN55015; EN61000-3-2 Class C; EN61000-3-3 EMS EN 61547; EN 61000-4-2; EN 61000-4-5 —1000V;
