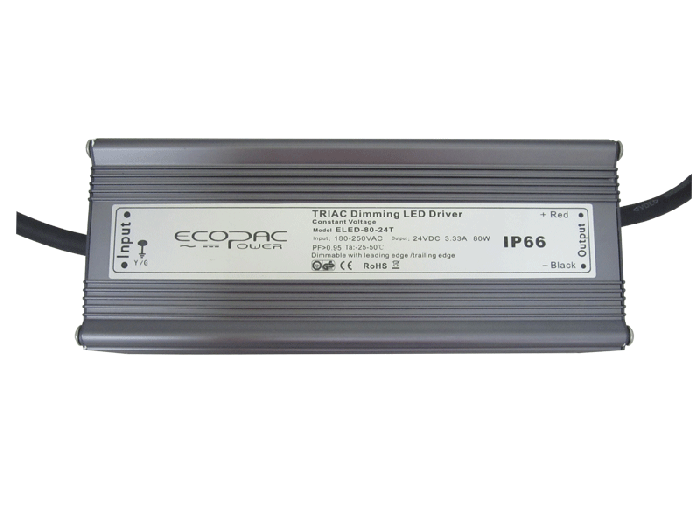

ELED-80-24T – Ecopac Constant Voltage LED Driver ELED-80-24T 80W 24V For Discount

Constant voltage Triac Mains dimming
Suitable for leading trailing edge
Protections: Short circuit Over voltage

Other features:

Built-in active PFC funtion (PF>0.95)
Cooling by free air convection
IP66 Design
Fully isolated, delivering up to 80W of power
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
80

Output Voltage
24V

Dimmable (Type)
Triac Leading edge & Trailing edge

Dimensions
200x 68x 45

EMC Standards
Compliance to EN55015, EN61000-3-2 (?50% load), EN55015, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN61547, light industry level

Input Voltage
175~265VAC

Safety Standards
EN-60950-1

Output Voltage Options
Single

Working Temperature
-40°C ~ +60°C

PDF Datasheet
ELED-80-T.pdf
