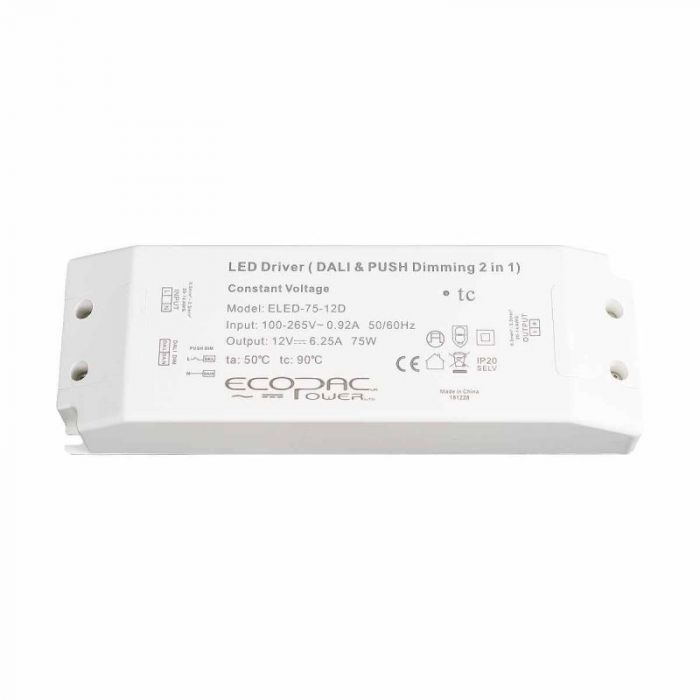

ELED-75-DS – Ecopac ELED-75-D Series DALI Dimmable LED Driver 75W 12-24V Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Ecopac ELED-75-D Series DALI Dimmable LED Drivers are 75W and available in oyputs of 12VDC & 24VDC.
Constant Voltage PWM Output Design
Dali & Push Dimmable
Protections: Short circuit Over Voltage Over Temperature
Other features:
Dimming range from 0.1% to 100%
Range 200-265VAC
Built-in PFC function
IP20design for indoor or outdoor installations
87% efficiency
3 years warranty
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
75
Output Voltage
Choose Option
Dimmable (Type)
DALI, Push Dimming
DC Output Adjustment
No
Dimensions
180 x 60 x 35
EMC Standards
Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547
Input Voltage
200-265VAC
Safety Standards
EN61347-1, EN61347-2-13, EN62493, IP20
Output Voltage Options
Single
Working Temperature
-40 ~ +60°C
PDF Datasheet
ELED-75-D.pdf
