ELED-75-12D – Ecopac ELED-75-12D DALI Dimmable LED Driver 75W 12V For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200

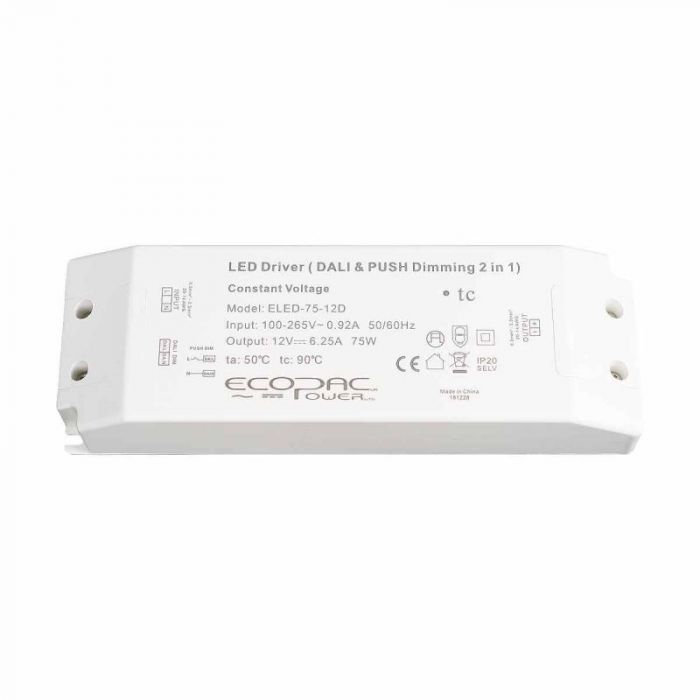

The Ecopac ELED-75-12D DALI Dimmable LED Driver is 75W 12VDC output.
Constant Voltage PWM Output Design
Dali & Push Dimmable
Protections: Short circuit Over Voltage Over Temperature
Other features:
Dimming range from 0.1% to 100%
Input Range 200-265VAC
Output 12VDC
Built-in PFC function
IP20design for indoor or outdoor installations
87% efficiency
3 years warranty
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
75
Output Voltage
12V
Dimmable (Type)
DALI, Push Dimming
DC Output Adjustment
No
Dimensions
355 x 215 x 215 mm
EMC Standards
Compliance to EN55015, EN61000-3-2, EN61000-3-3 (?60% load), EN61000-4-2,3,4,5,6,11, EN61547
Input Voltage
100-265VAC
Safety Standards
EN61347-1, EN61347-2-13, EN62493, IP20
Output Voltage Options
Single
Working Temperature
-40 ~ +60°C
PDF Datasheet
ELED-75-D.pdf
