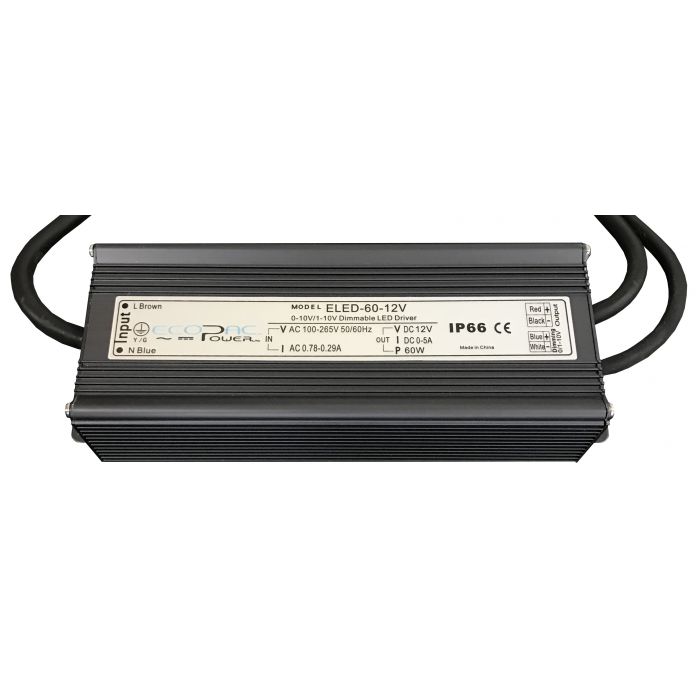

ELED-60-V-S – Ecopac ELED-60-V Series Constant Voltage LED Driver 60W 12-24V Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
The Ecopac Power ELED-60-V Series of Constant voltage LED drivers feature a three in one dimming function (0 1-10Vdc or PWM signal or resistance). These high quality LED Drivers are supplied with a 3 year warranty. Available in both 12 & 24 volt output, please select from the dropdown below.
Key features:
Universal AC input Full range 100-265VAC
Built-in active PFC function
Dimming range: 0-100%
3 years warranty
IP66 rated suitable for indoor or outdoor installation
Short circuit protection
Over current protection
Over temperature protection
Over loading protection
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
60
Dimmable (Type)
0-10V, PCW Signal & Resistance
Dimensions
200x 70x 46
EMC Standards
Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A
Input Voltage
100-265VAC
Safety Standards
EN61347-1, EN61347-2-13
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-60-V.pdf
