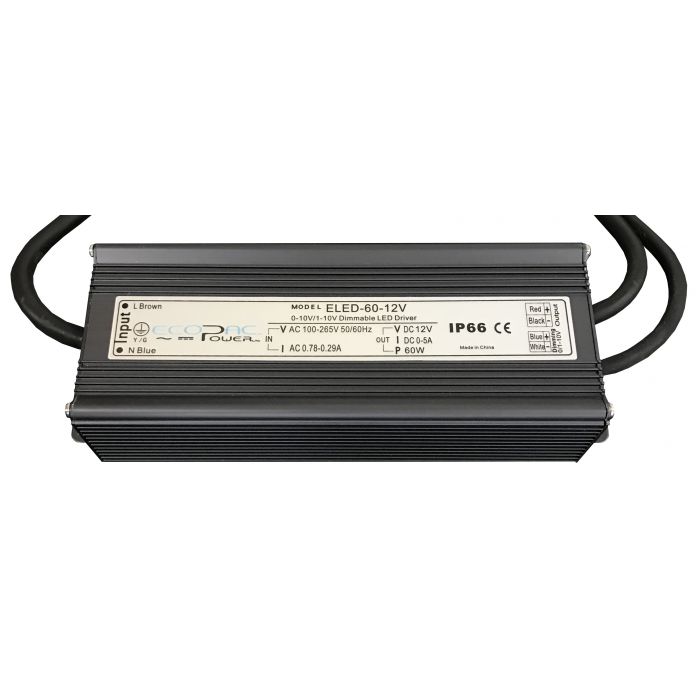

ELED-60-12V – 60W 12V 1-10V Dimmable on Sale

Three in one dimming function (0 1-10Vdc or PWM signal or resistance)
IP66 design for indoor or outdoor installation
Protections: Short circuit Over Current Over Temperature Over Loading
Other features:

Universal AC input Full range 100-265VAC
Built-in active PFC function
Dimming range: 0-100%
3 years warranty
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
60

Output Voltage
12V

Dimmable (Type)
0-10V, PCW Signal & Resistance

Dimensions
200x 70x 46

EMC Standards
Compliance to EN55015, EN61000-3-2 (>60% load) Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A

Input Voltage
100-265VAC

Safety Standards
EN61347-1, EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40~+60°C

PDF Datasheet
ELED-60-V.pdf
