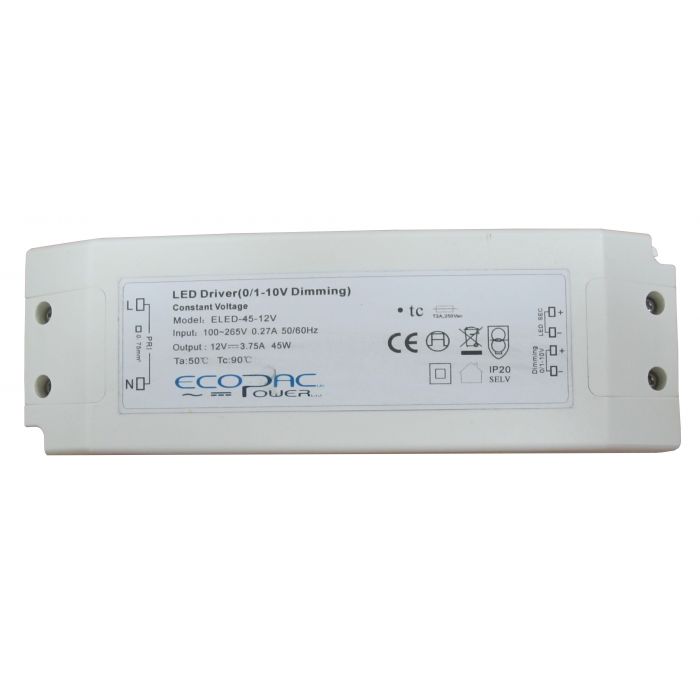

ELED-45-12V – Ecopac Dimmable LED Driver ELED-45-12V 45w 12V Online Hot Sale

Three in one dimming function (0 1-10Vdc or PWM signal or resistance)Dimming range: 0-100%Universal AC input full range 100-265VACBuilt-in active PFC function (>0.98)High efficiency up to 83%Protections: Short circuit Over current Over loadingFully isolated plastic case with terminals IP20Compliance to worldwide safety regulations for lighting
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
45

Output Voltage
12V

Dimmable (Type)
1-10VDC, PWM signal, resistance

Dimensions
179x 60.4x 35.2mm

EMC Standards
Compliance to EN55015, EN61000-3-2 (>50%load), Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level

Input Voltage
100-265Vac

Safety Standards
EN61347-2-13, IP66

Output Voltage Options
Single

Working Temperature
-40~+60°C

PDF Datasheet
ELED-45-V_Series.pdf
