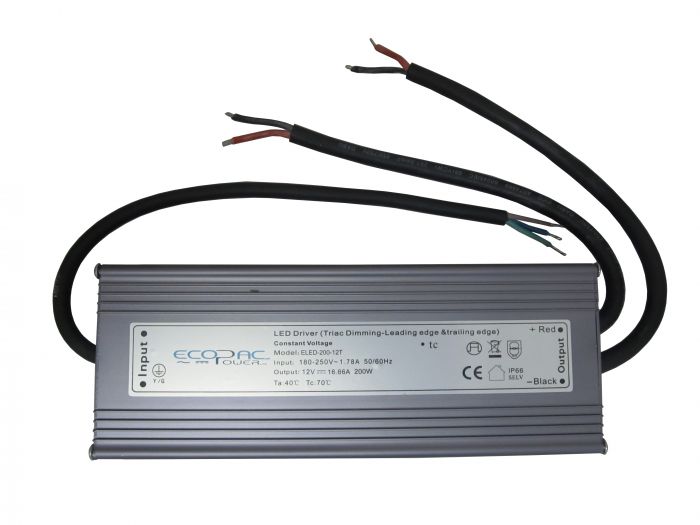

ELED-200P-12T – Ecopac Constant Voltage Triac Dimmable LED Driver ELED-200-12T 200W 12V Supply

Triac dimmable
Constant voltage design Protections: Short circuit Overload Over voltage Over temperature
Other Features:

Universal AC input Full range
IP66 design for indoor or outdoor installations
Protections: Short circuit Overload Over voltage Over temperature
Built-in PFC function (PFC>0.98)
Over 85% efficiency
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
200

Output Voltage
12V

Dimmable (Type)
Triac Leading edge & Trailing edge

Dimensions
226.5 x77.5 x47mm

EMC Standards
Compliance to EN55015,EN61000-3-2 (  ? 60%load), Compliance to EN61000-4-2,3,4,5,6, 11,EN61547,A light industry level

Input Voltage
180 – 240 VAC

Safety Standards
EN61347-2-13.IP66

Output Voltage Options
Single

Working Temperature
-40 – +60°C

PDF Datasheet
ELED-200-T.pdf
