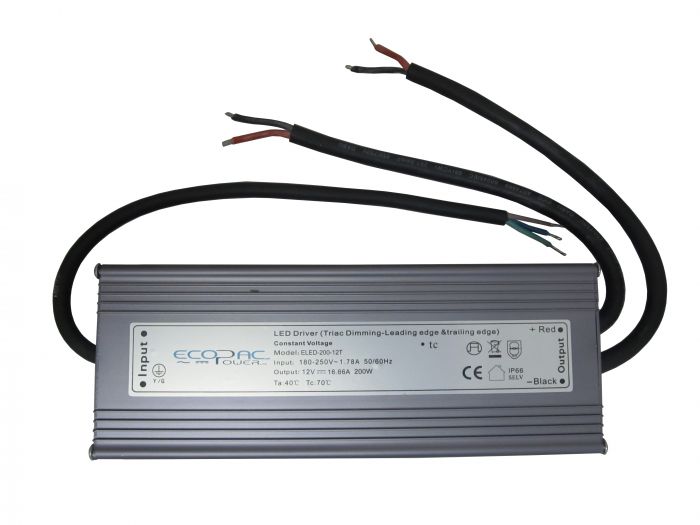

ELED-200-S – Ecopac ELED-200-T Series Constant Voltage LED Driver 200W 12V – 24V Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Triac dimmableConstant voltage design
Protections: Short circuit Overload Over voltage Over temperature
Other Features:
Universal AC input Full range
IP66 design for indoor or outdoor installations
Protections: Short circuit Overload Over voltage Over temperature
Built-in PFC function (PFC>0.98)
Over 85% efficiency
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
200
Dimmable (Type)
Triac Leading edge & Trailing edge
Dimensions
226.5 x77.5 x47mm
EMC Standards
Compliance to EN55015,EN61000-3-2 ( ? 60%load), Compliance to EN61000-4-2,3,4,5,6, 11,EN61547,A light industry level
Input Voltage
180 – 264 VAC
Safety Standards
EN61347-2-13.IP66
Output Voltage Options
Single
Working Temperature
-40 – +60°C
PDF Datasheet
ELED-200-T.pdf
