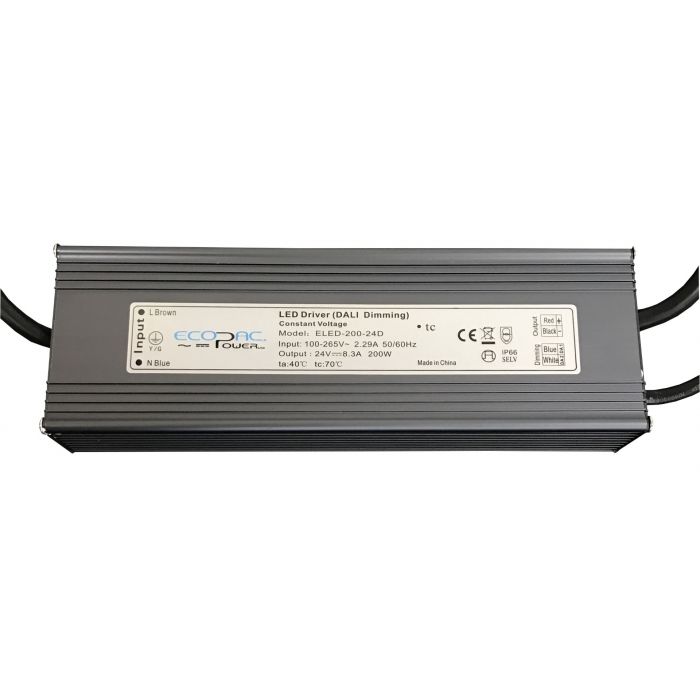

The Ecopac ELED-200-D Series is a DALI dimmable constant voltage design, available in 12V and 24V output voltage. Ecopac LED drivers are high quality and competitive cost, each unit benefits from a 3 year warranty.
DALI dimmableConstant voltage design
Protections: Short circuit Overload Over voltage Over temperature
Other Features:
Universal AC input Full range
IP66 design for indoor or outdoor installations
Protections: Short circuit Overload Over voltage Over temperature
Built-in PFC function (PFC>0.98)
Over 85% efficiency
3 Year Warranty
More Information
Manufacturer
Ecopac Power
Output Wattage (W)
200
Dimmable (Type)
DALI
Dimensions
255x 80x 53 (LxWxH) mm
EMC Standards
Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level
Input Voltage
100-265VAC
Safety Standards
EN61347-1-12 IP66
Output Voltage Options
Single
Working Temperature
-40~+60°C
PDF Datasheet
ELED-180_200-D_Series.pdf
