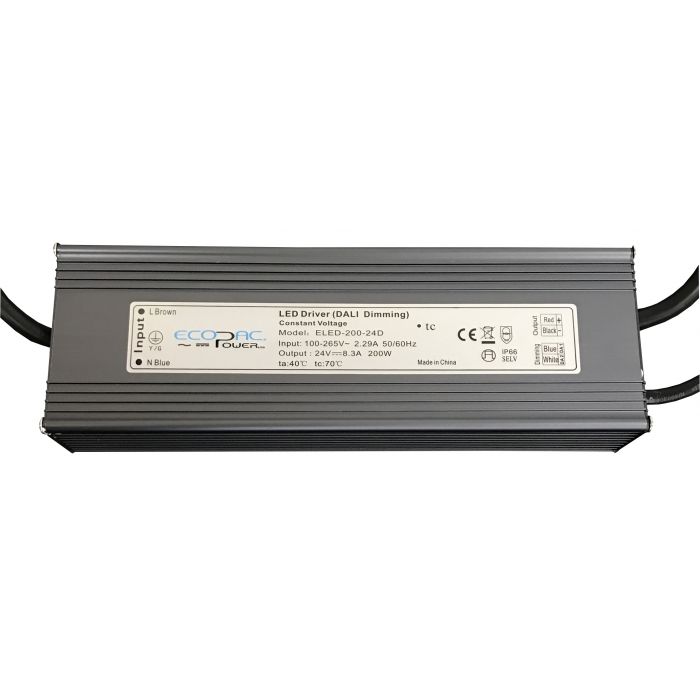

ELED-200-24DP2 Constant Voltage DALI Dimmable LED Driver ELED-200-24D 200W 24V Online

ELED-200-DP2 Series Features:

Features:

• Constant voltage PWM Output (NFC regulation)
• DALI & Push dimming function (0-100%)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 91%
• Protections: Short circuit Over load
Over temperature
• Cooling by free air convection
• IP66 design for indoor and outdoor installation.
• Suitable for intelligent LED lighting



Dali dimmableConstant voltage designProtections: Short circuit Overload Over Voltage Over TemperatureOther features:Universal AC input Full rangeIP66 design for indoor or outdoor installationsBuilt-in PFC functionCooling by free air convection85% efficiency3 years warranty
More Information Manufacturer Ecopac Power Output Wattage (W) 200 Output Voltage 24V Dimmable (Type) DALI Dimensions 255x 80x 53 EMC Standards Compliance to EN55015, EN61000-3-2 (>50% load) Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, A light industry level Input Voltage 100-265VAC Safety Standards EN61347-1-12 IP66 Output Voltage Options Single Working Temperature -40~+60°C PDF Datasheet ELED-200-T.pdf
