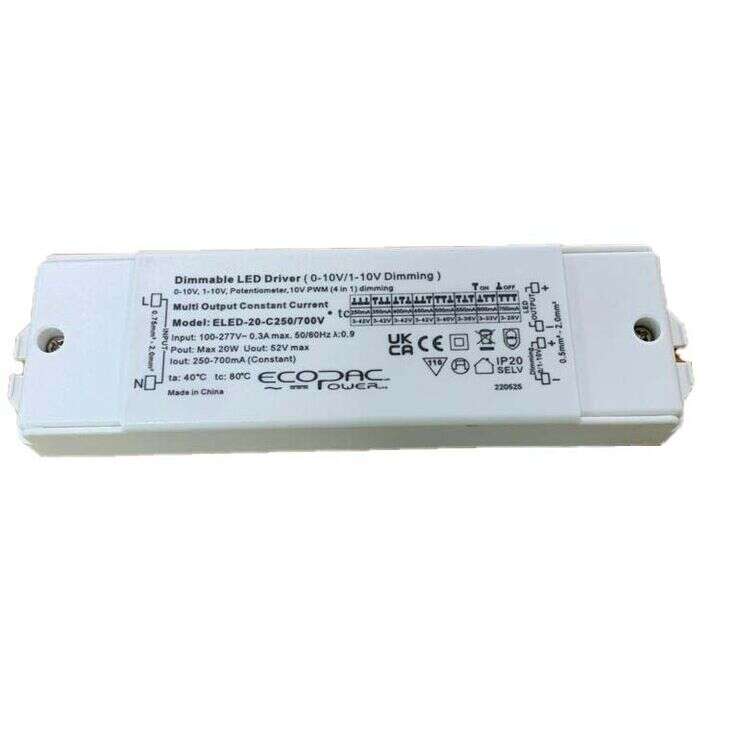

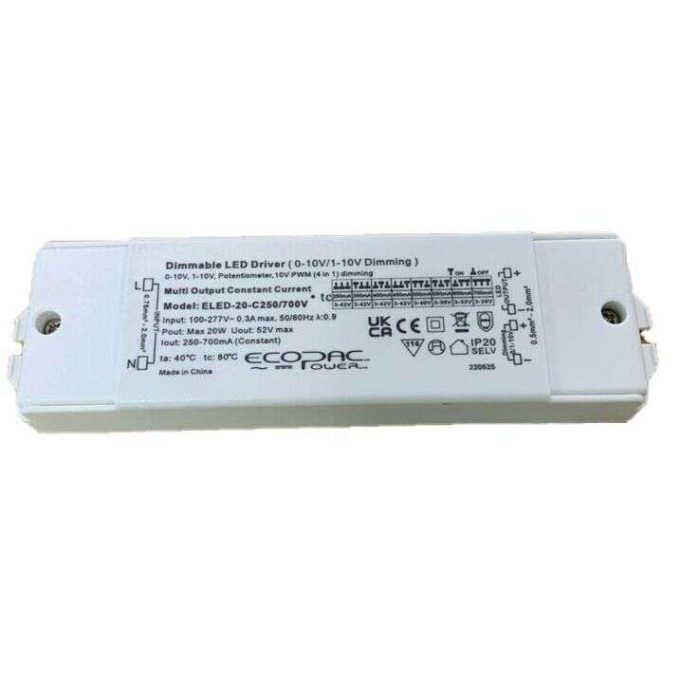

ELED-20-C250 700V 1-10V Dimmable Discount
23 people are viewing this right now
5 products sold in last 15 hours
Selling fast! Over 3 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ELED-20-C250 700V Series Features:
https: www.ecopacpower.co.uk assets pdf ELED-20-C250-700V_2022-06-20-143631.pdf
Features:
• Constant Current mode output with multiple levels selectable by dip switch
• 0 1-10V Dimming Control
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 81%
• Protections: Short circuit Over load Over temperature
• Cooling by free air convection
| Spec | ELED-20-C250 700V(700mA) | ELED-20-C250 700V(600mA) | ELED-20-C250 700V(550mA) | ELED-20-C250 700V(500mA) | ELED-20-C250 700V(450mA) | ELED-20-C250 700V(400mA) | ELED-20-C250 700V(350mA) | ELED-20-C250 700V(250mA) | |||||||||
| Wattage | 20.1 | 19.8 | 19.8 | 20 | 18.9 | 16.8 | 14.7 | 10.5 | |||||||||
| Input Voltage | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | |||||||||
| Output Current | 700mA | 600mA | 550mA | 500mA | 450mA | 400mA | 350mA | 250mA | |||||||||
| Output Voltage Options | 3~29 | 3~33 | 3~36 | 3~40 | 3~42 | 3~42 | 3~42 | 3~42 | |||||||||
| Dimensions | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | 159.5 x 43 x 20 mm | |||||||||
| Working Temperature | -40~+80°C | ||||||||||||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | ||||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | ||||||||||||||||
| Title | Default Title |
|---|
