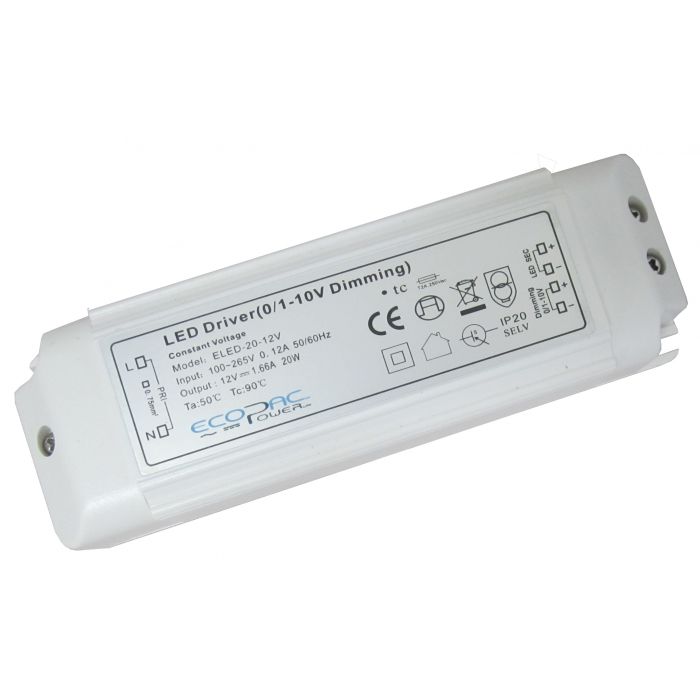

ELED-20-48V – Ecopac Dimmable LED Driver ELED-20-48V 20w 48V Fashion

Universal AC input full range 100-265VACBuilt-in active PFC functionHigh efficiency up to 86%Protections: Short circuit Over current Over loadingCooling by free air convectionFully isolated plastic case with terminals IP20Class 2 Power unitThree in one dimming function (0 1-10Vdc or PWM signal or resistance)Dimming range: 0-100%Suitable for LED lighting and moving sign applicationsCompliance to worldwide safety regulations for lighting
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
20

Output Voltage
48V

Dimmable (Type)
0-10V, Potentiometer, 10V PWM dimmable

Dimensions
140x 45x 27mm

EMC Standards
Compliance to EN55015, EN61000-3-2 (>60%load), Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry level (surge 4KV) Criteria A

Input Voltage
100-265Vac

Safety Standards
EN61347-1 EN61347-2-13

Output Voltage Options
Single

Working Temperature
-40-+60°C

PDF Datasheet
ELED-20-V_Seires.pdf
