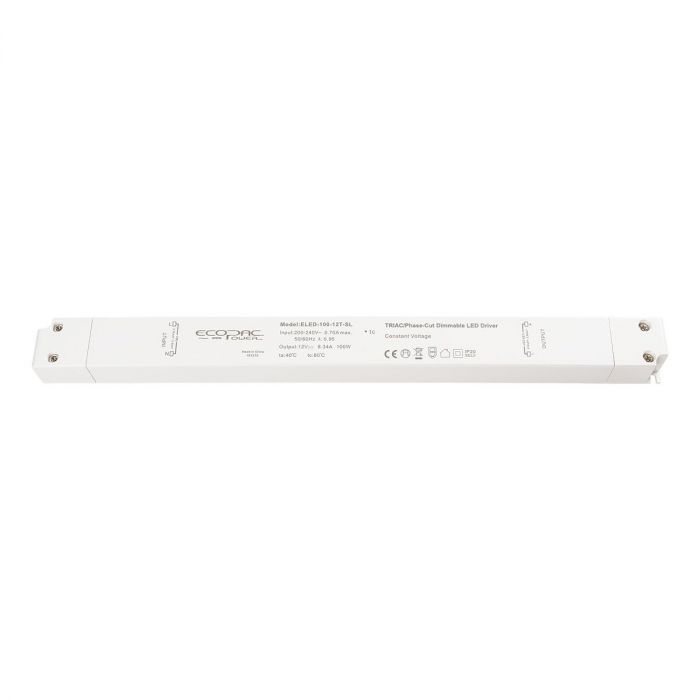

ELED-100P-12T-SL – Ecopac ELED-100P-12T-SL Slimline Triac Dimmable LED Driver 100W 12V on Sale

The Ecopac ELED-100P-12T-SL constant voltage slimline LED drivers are high quality, Triac dimmable. These drivers can be used with leading edge and trailing edge Triac dimmers.
Built in short circuit, overload, over current and over temperature protection together with a 3 year warranty make the ELED-100P-12T-SL highly reliable.

Constant Voltage Design 12V Output
Dimmable using leading edge & trailing edge Triac Dimmers
PWM Output
3 Years warranty
Protections: Short circuit Over loading Over current Over temperature
Efficiency up to 85%
Cooling by free air convection
IP20 design
Suitable for LED lighting and moving sign applications
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
100

Output Voltage
12V

Dimmable (Type)
Triac Leading edge & Trailing edge

DC Output Adjustment
No

Dimensions
330 x 30 x 22 mm

EMC Standards
EN55015, EN61000-3-2, EN61000-3-3, EN61000-4-2,3,4,5,6,11, EN61547

Input Voltage
200-240VAC

Safety Standards
EN613471, EN61347-2-13, EN62493, IP20

Output Voltage Options
Single

Working Temperature
-40~+70°C

PDF Datasheet
ELED-100P-T-SL.pdf
