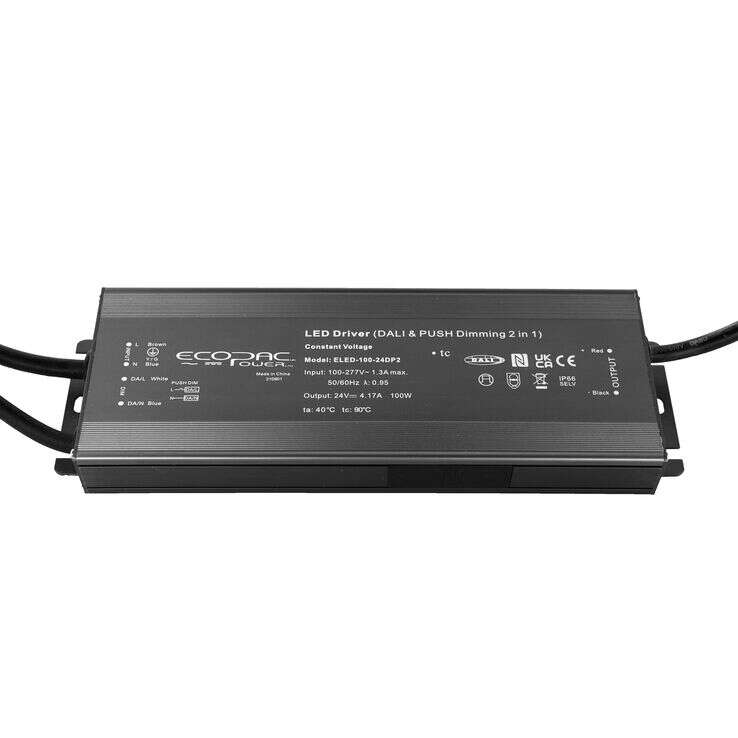

ELED-100-DP2 Series DALI Dimmable Constant Voltage LED Drivers 100W 12v 24v IP66 Sale
20 people are viewing this right now
15 products sold in last 2 hours
Selling fast! Over 19 people have this in their carts
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
ELED-100-DP2 Series Features:
Features:
• Constant voltage PWM Output (NFC regulation)
• DALI & Push dimming function
• AC input: 200-240VAC
• Built-in active PFC function
• Efficiency up to 89%
• Protections: Short circuit Over load
Over temperature
• Cooling by free air convection
• IP66 design for indoor and outdoor installation.
• Suitable for intelligent LED lighting
Suitable replacement for the Ansell ADDIM100 24V DD
| ELED-100-12DP2 | ELED-100-24DP2 | ||||
| Wattage | 100 | 100 | |||
| Input Voltage | 100~277VAC | 100~277VAC | |||
| Output Current | 8.34 | 4.17 | |||
| Output Voltage | 12 | 24 | |||
| Dimensions | 231x 78 x 25.1 mm | 231x 78 x 25.1 mm | |||
| Working Temperature | -40~60°C | ||||
| Safety Standards | EN61347-1, EN61347-2-13, EN62493, IP66 | ||||
| EMC Standards | Compliance to EN55015, EN61000-3-2, EN61000-3-3 (≥60% load) | ||||
| Voltage | 12v, 24v |
|---|
