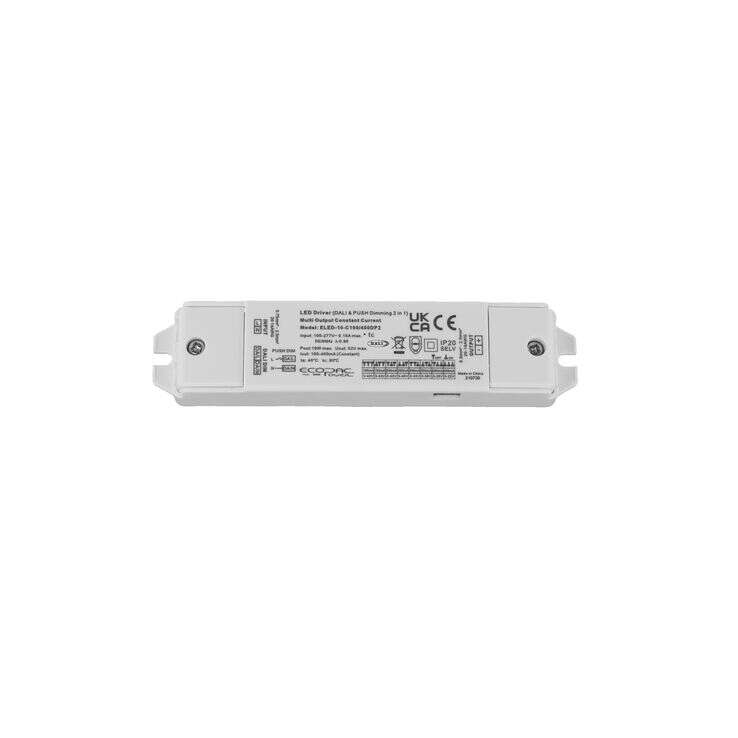

ELED-10-C100 450DP2 Features:
10W DALI2 and Push Dimming Multiple-Stage Output Current LED Drive
Features:
• Constant Current mode output with multiple levels selectable by dip switch
• DALI 2 dimming function (IEC62386)
• AC input: 100-277VAC
• Built-in active PFC function
• Efficiency up to 79%
• Protections: Short circuit Over load Over temperature
• Cooling by free air convection
• Suitable for intelligent LED lighting
| ELED-10-C100 450DP2(450mA) | ELED-10-C100 450DP2(400mA) | ELED-10-C100 450DP2(350mA) | ELED-10-C100 450DP2(300mA) | ELED-10-C100 450DP2(250mA) | ELED-10-C100 450DP2(200mA) | ELED-10-C100 450DP2(150mA) | ELED-10-C100 450DP2(100mA) | ||||||||||
| Wattage | 10 | 10 | 10 | 10 | 10 | 8.4 | 6.3 | 4.2 | |||||||||
| Input Voltage | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | 100~277VAC | |||||||||
| Output Current | 450mA | 400mA | 350mA | 300mA | 250mA | 200mA | 150mA | 100mA | |||||||||
| Output Voltage | 3~22 | 3~25 | 3~29 | 3~33 | 3~40 | 3~42 | 3~42 | 3~42 | |||||||||
| Dimensions | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | 135 x 30x 20 mm | |||||||||
| Working Temperature | -40~60°C | ||||||||||||||||
| Safety Standards | EN61347-1, EN61347-2-13, UL8750 | ||||||||||||||||
| EMC Standards | Compliance to EN55015, EN61000-3-2,3 (≥50% load), FCC Part 15B | ||||||||||||||||
