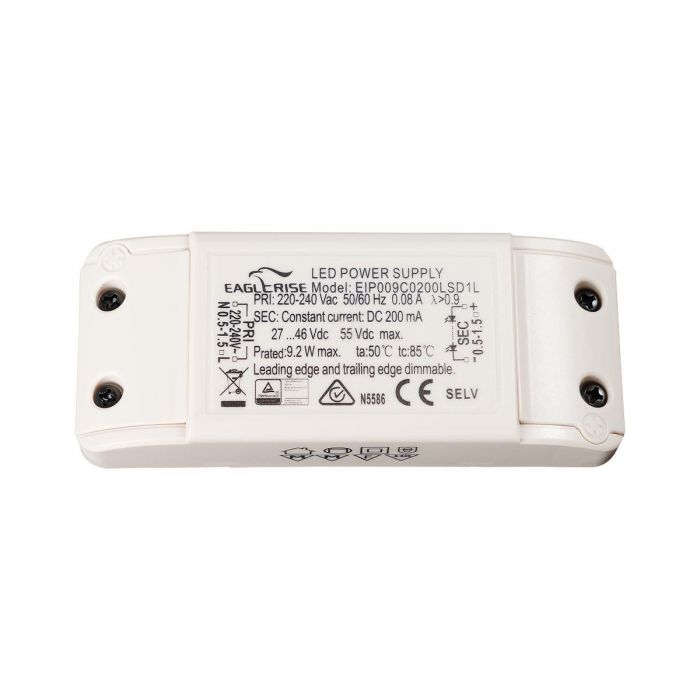

EIP0012C0350LSD1L – Eaglerise Constant Current Triac Dimmable LED Driver 12W-350mA Cheap

Eaglerise EIP009CLSD1L Series constant current, triac dimmable LED driver. Output current 350mA 9W
Features

Short circuit, over load, over voltage & over temperature protection
IP20 rated
Power Factor ?0.9
Efficiency ?78%
Class II, SELV
Leading edge & trailing edge dimmable
5 Year Warranty
More Information

Manufacturer
Eaglerise

Output Wattage (W)
9

Output Current
350mA

Dimmable (Type)
Triac Leading edge & Trailing edge

DC Output Adjustment
No

Dimensions
105 x 42 x 24 mm

EMC Standards
EN55015; EN61000-3-2 Class C; EN61000-3-3, EN 61547;EN 61000-4-2, Performance Criteria B; EN 61000-4-5, 1000V Performance Criteria C

Input Voltage
220-240VAC

Safety Standards
EN 61347-1; EN61347-2-13

Output Voltage Options
Single

Working Temperature
-10 ~ +50C

PDF Datasheet
EIP009CxxxxLSD1L.pdf
