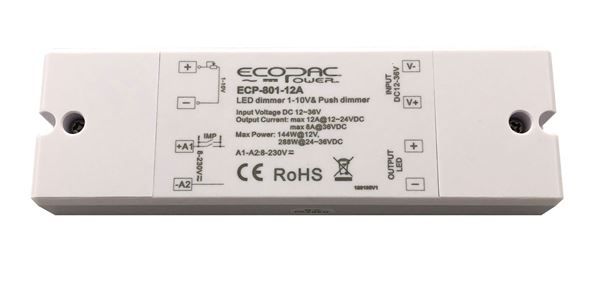

ECP-801-12A For Sale

The Ecopac ECP-801-12A LED dimming inteface can be used in conjuction with non dimmable LED drivers to provide 1-10V signal dimming.

• Compact Size, High Output
• Current 1 Channel, max 12A@12~24VDC max 8A@36VDC CH Output
• Ultra-pro Push Dim Function
• Directly Support Both AC and DC Input Push Switches
• 1-10V Dimmer Function While Controlled by 1-10V Signal

• More Information

  Output Voltage		12
  Brand		Ecopac Power
  Output Wattage (W)		288
  Dimmable (Type)		1-10V
  Dimensions		145 x 46.5 x 16 mm
  Input Voltage		12-36V
  Working Temperature		-40~+85°C







  Title	Default Title
