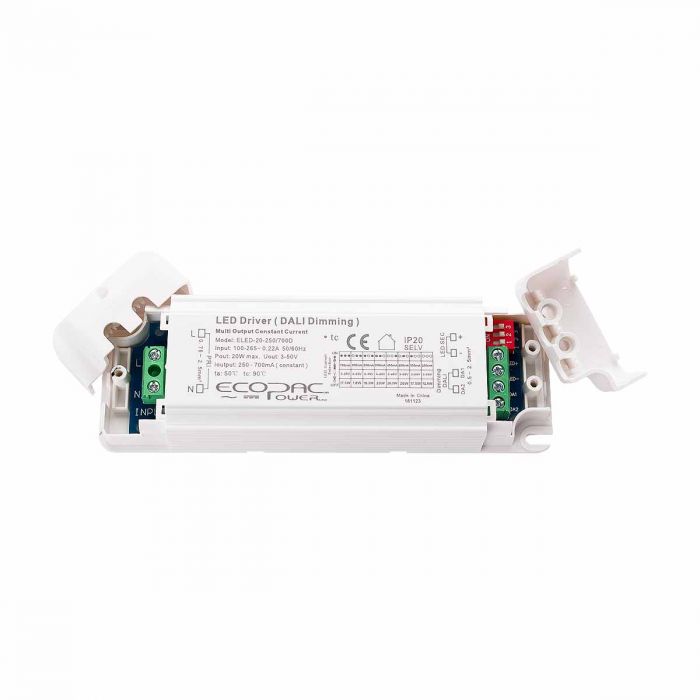

Ecopac ELED-20-250 700D Selectable Constant Current Dali Dimmable LED Driver 20W 250-700mA Fashion

Constant Current mode output with selectable levels 250mA – 700mA via by dip switchs
DALI dimming function
Other features:

AC input: 100-265VAC
Built-in active PFC function
Efficiency up to 86%
Protections: Short Circuit Over load Over temperature
IP20 design for indoor installation
Cooling by free air convection
Suitable for LED lighting and moving signs
More Information

Manufacturer
Ecopac Power

Output Wattage (W)
7

Output Current
700mA

Dimmable (Type)
DALI

Dimensions
140*45*28mm

EMC Standards
Compliance toEN55015,EN61000-3-2,3 (?50%load), Compliance to EN61000-4-2,3,4,5,6,11,EN61547,A light industry level ?surge4KV?

Input Voltage
100-265Vac

Safety Standards
EN61347-1 EN61347-2-13 IP20

Output Voltage Options
Single

Working Temperature
-40 ~ +60°C

PDF Datasheet
ELED-20-250700D.pdf
