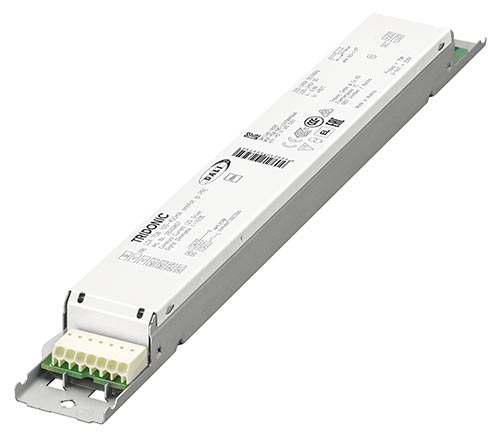

Driver LCA 50W 350–1050mA one4all lp PRE premium series SELV 28000656 on Sale

Product description

• NEW: lumDATA (DALI-2 part ext. 251, 252 and 253)
• Dimmable built-in constant current LED Driver
• Dimming range 1 to 100 %
• For luminaires of protection class I and protection class II
• Output current adjustable between 350 – 1,050 mA via ready2mains Programmer, I-SELECT 2 plugs or DALI
• Max. output power 50 W
• Up to 91 % efficiency
• Power input on stand-by < 0.15 W
• Nominal lifetime up to 100,000 h
• 5 years guarantee

• Housing properties

  • Low profile metal casing with white cover
  • Type of protection IP20

  • Interfaces

    • one4all (DALI-2 DT 6, DSI, switchDIM, corridorFUNCTION)
    • ready2mains (configuration and dimming via mains)
    • Terminal blocks: 0° push terminals

    • Functions

      • Adjustable output current in 1-mA-steps (DALI, ready2mains, I-SELECT 2)
      • Fulfills DALI-2 parts: 251 (Luminaire data), 252 (Energy reporting) and 253 (Diagnostics & Maintenance)
      • Constant light output function (CLO)
      • Power-up fading at AC
      • Configurable via ready2mains
      • Switch off the Driver with fade2zero
      • Service monitor to log certain events
      • Protective features (overtemperature, short-circuit, overload, no-load, input voltage range, reduced surge amplification)
      • Intelligent Voltage Guard (overvoltage and undervoltage monitoring)
      • Suitable for emergency escape lighting systems acc. to EN 50172

      • Benefits

        • Flexible configuration via companionSUITE
        • Application-oriented operating window for maximum compatibility
        • Best energy savings due to low stand-by losses and high efficiency
        • Flexible configuration via DALI, ready2mains and I-SELECT 2
        • Reliability proven by lifetime up to 100,000 h and 5 years guarantee

        • Typical applications

          • For linear area lighting in office applications
