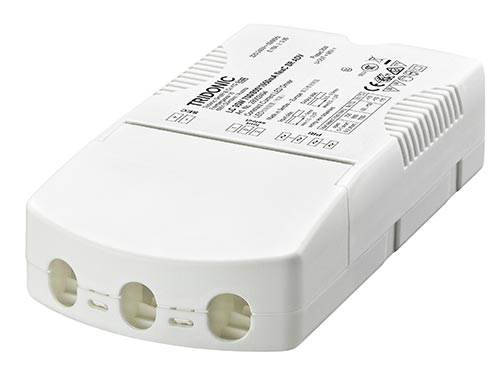

Driver LC 35W 700 800 1050mA flexC SR ADV Discount

Product description

• Independent fixed output LED driver
• For luminaires of protection class I and protection class II
• For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711
• Temperature protection as per EN 61347-2-13 C5e
• Adjustable output current between 700, 800 and 1,050 mA
• Max. output power 35 W
• Up to 87.5 % efficiency
• Nominal lifetime up to 50,000 h
• 5 years guarantee

• Housing properties

  • Casing: polycarbonate, white
  • Type of protection IP20

  • Interfaces

    • Input terminals: 0° screw terminals
    • Output terminals: 45° push terminals

    • Functions

      • Overload protection
      • Short-circuit protection
      • No-load protection
      • Overtemperature protection
      • Burst protection voltage 1 kV
      • Burst protection voltage 1 kV (L to N)
      • Surge protection voltage 2 kV (L N to earth)

      • Typical applications

        • For spot light and downlight in retail and hospitality applications
        • For panel light and area light in office and education application
