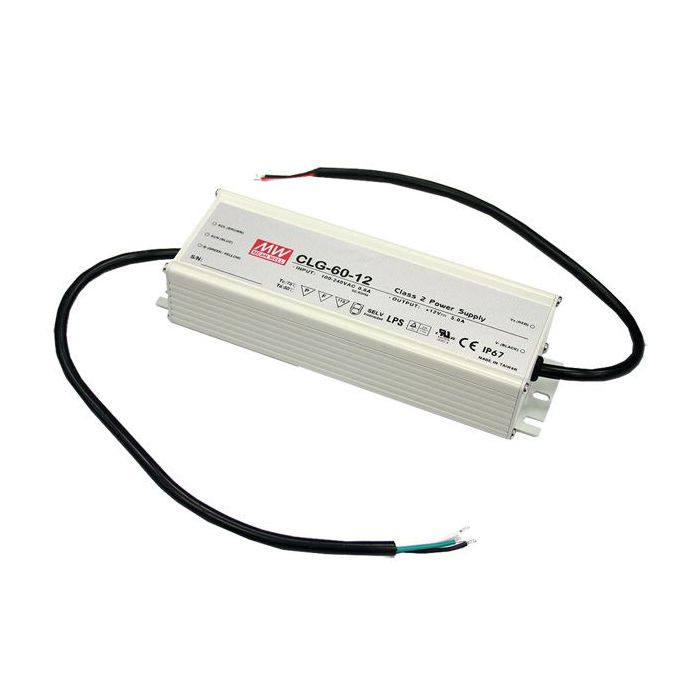

CLG-60-S – Mean Well CLG-60 Series LED Driver 60W 12V – 48V For Discount

Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP67 ratedClass 2 power unit Pass LPSCooling by free air convection Suitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

60

Dimmable (Type)

No

DC Output Adjustment

Fixed . Can be modified between 90%~110%

Dimensions

172 x 61.5 x 39 (LxWxH) Mm

EMC Standards

EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage

90~295VAC, 127~417VDC

Safety Standards

UL1310, UL8750, UL879, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13

Output Voltage Options

Single

Working Temperature

-30~+60C

PDF Datasheet

CLG-60-SPEC.PDF
