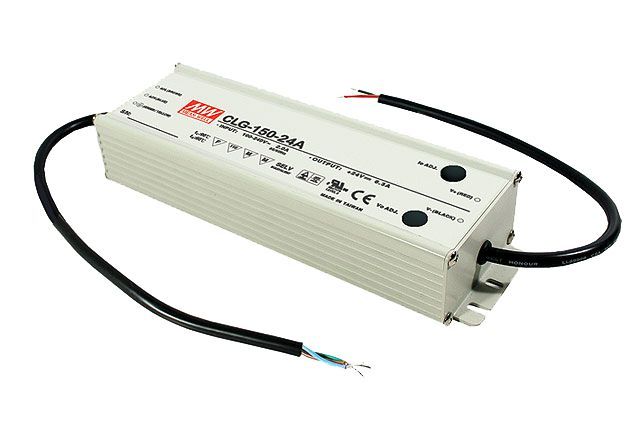

CLG-150-BS – Mean Well CLG-150 B Series IP67 Rated LED Driver 132W – 150W 12V – 48V For Cheap

Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP67 ratedC.C. level can be adjusted through output cableCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information

Manufacturer

Mean Well

Output Wattage (W)

150

Dimmable (Type)

No

Dimensions

222 x 68 x 39 (LxWxH) mm

EMC Standards

EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547

Input Voltage

90~295VAC, 127~417VDC

Safety Standards

UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13

Output Voltage Options

Single

Working Temperature

-30~+70°C

PDF Datasheet

CLG-150-spec.pdf
