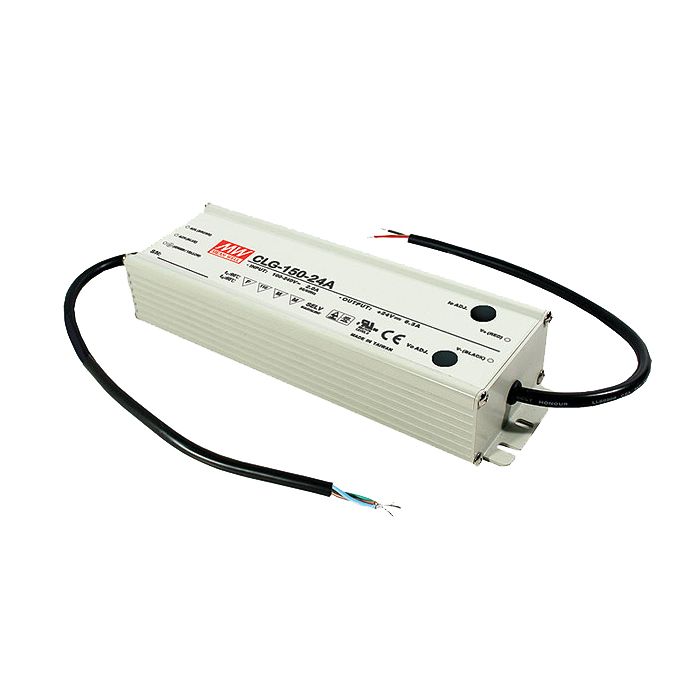

CLG-150-24B – Mean Well LED Driver CLG-150-24B 150W 24V on Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP67 ratedC.C. level can be adjusted through output cableCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
150
Output Voltage
24V
DC Output Adjustment
Constant current level adjustable through output cable
Dimensions
222 x 68 x 39
EMC Standards
EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~295VAC, 127~417VDC
Safety Standards
UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C (refer to output derating curve)
PDF Datasheet
CLG-150-spec.pdf
