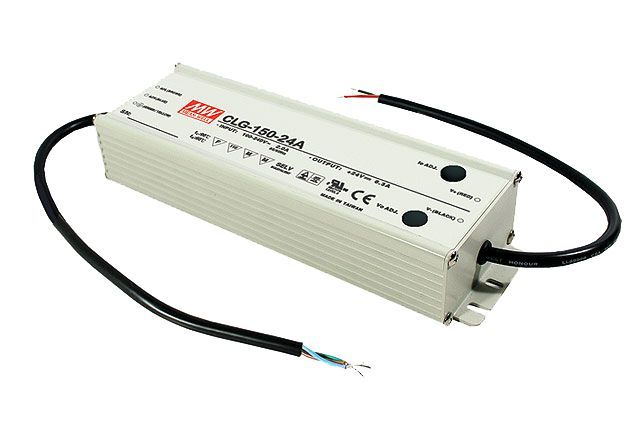

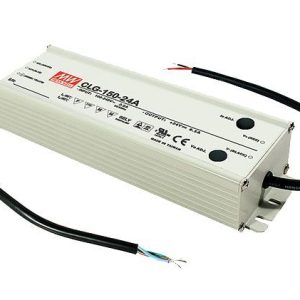

CLG-150-24 – Mean Well CLG-150 Series IP65 Rated LED Driver 132W – 150W 24v Cheap
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP67 ratedC.C. level can be adjusted through output cableCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
150
Dimmable (Type)
No
DC Output Adjustment
A type can be adjusted by internal potentiometer
Dimensions
222 x 68 x 39 (LxWxH) Mm
EMC Standards
EN55015, EN55022 class B, EN61000-3-2 class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~295VAC, 127~417VDC
Safety Standards
UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
CLG-150-spec.pdf
