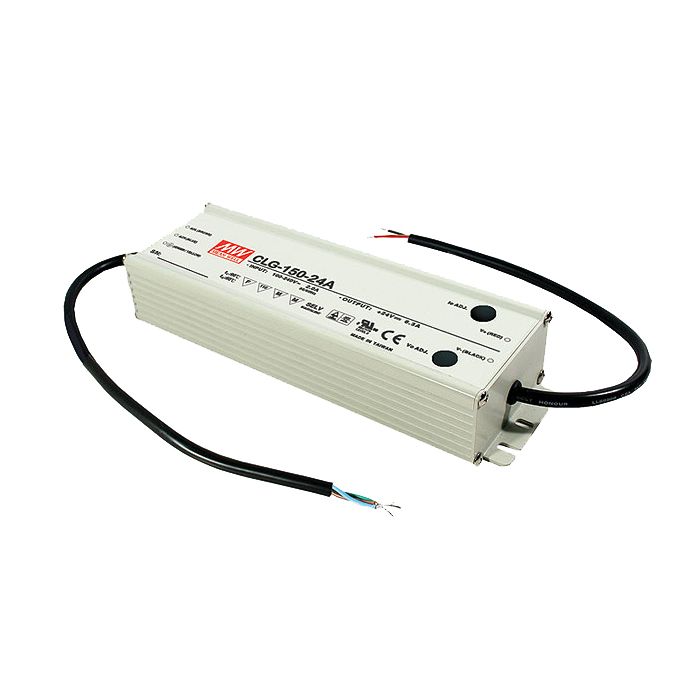

CLG-150-15A – Mean Well LED Driver CLG-150-15A 150W 15V Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP65 design for indoor or outdoor installationsCooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)Output voltage and C.C level can be adjusted through internal potentiometer3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
150
Output Voltage
15V
Dimmable (Type)
No
DC Output Adjustment
A type can be adjusted by internal potentiometer
Dimensions
222 x 68 x 39
Input Voltage
90~295VAC, 127~417VDC
Safety Standards
UL60950-1 , UL1012, UL8750, TUV EN60950-1, EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C (refer to output derating curve)
PDF Datasheet
CLG-150-spec.pdf
