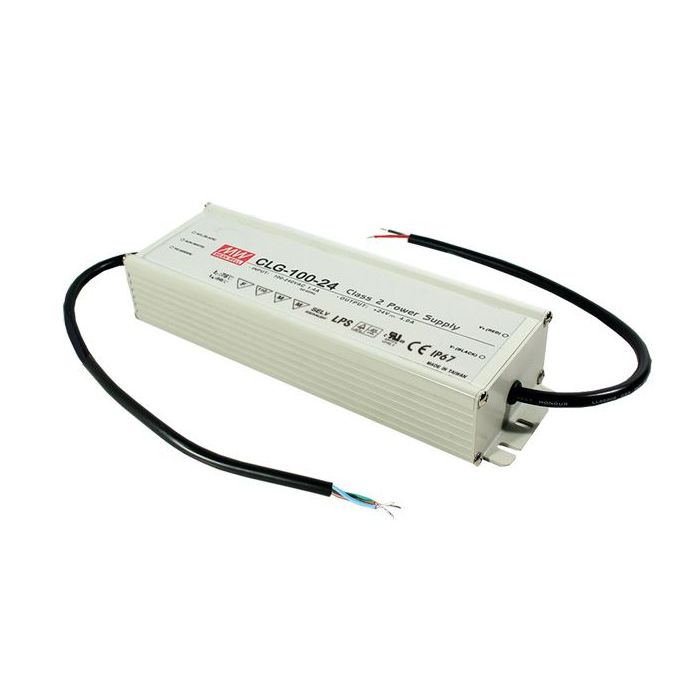

CLG-100-S – Mean Well CLG-100 Series LED Driver 60W – 100W 12V – 48V For Discount
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP67 ratedClass 2 power unit Pass LPS Cooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
100
Dimmable (Type)
No
Dimensions
222 x 68 x 39 (LxWxH) mm
Input Voltage
90~295VAC, 127~417VDC
Safety Standards
UL1310, UL8750, UL879, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, TUV EN60950-1
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
CLG-100-SPEC.PDF
