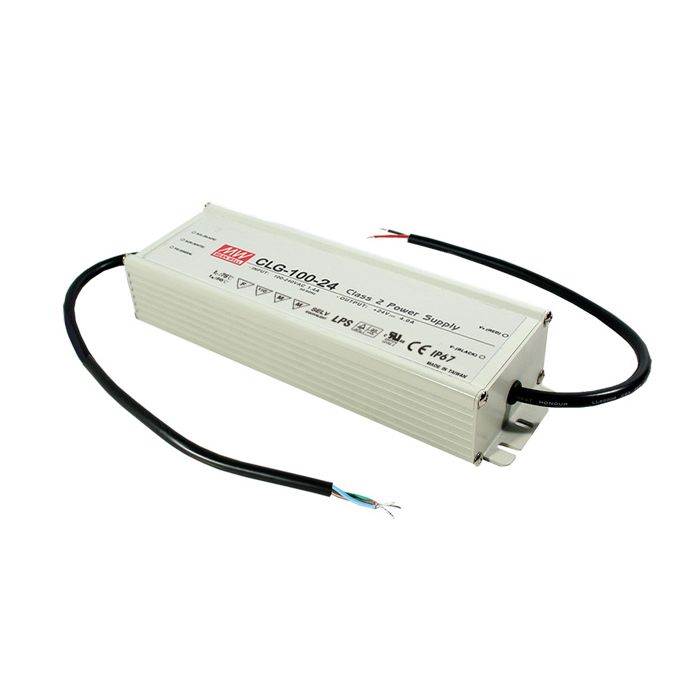

CLG-100-36 – Mean Well LED Driver CLG-100-36 100W 36V Fashion

Built-in active PFC function, PF>0.9 for 75% of load or higherBuilt-in constant current limiting circuit (C.V + C.C mode)Protections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295 VAC) Full rangeIP67 ratedClass 2 power unit Pass LPS Cooling by free air convectionSuitable for LED lighting, street lighting and moving sign applicationsMeet 4KV surge immunity level (IEC 61000-4-5)3 years warranty
More Information

Manufacturer
Mean Well

Output Wattage (W)
100

Output Voltage
36V

Dimmable (Type)
No

DC Output Adjustment
Fixed . Can be modified between 85%~100% rated output voltage

Dimensions
222 x 68 x 39

Input Voltage
90~295VAC, 127~417VDC

Safety Standards
UL1310, UL8750, UL879, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13, TUV EN60950-1

Output Voltage Options
Single

Working Temperature
-30~+70°C (refer to output derating curve)

PDF Datasheet
CLG-100-SPEC.PDF
