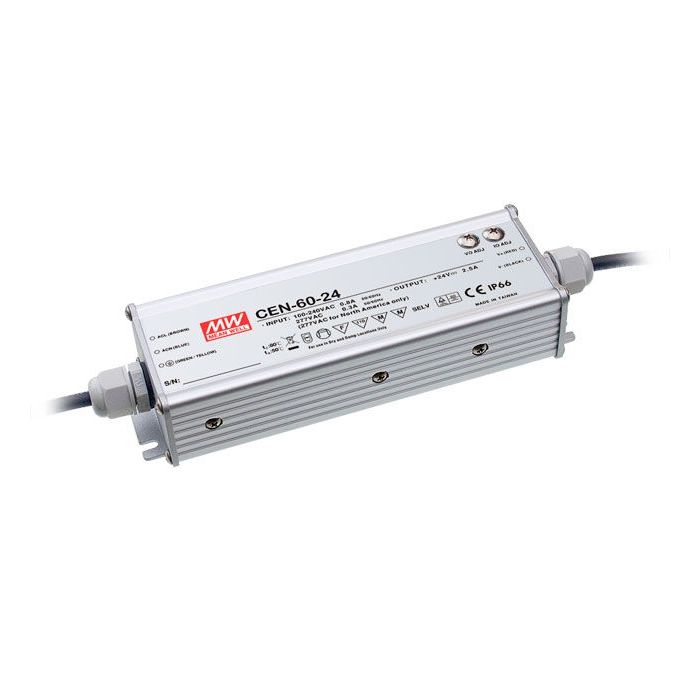

CEN-60-S – Mean Well CEN-60 Series LED Driver 60W 12V – 54V Online Sale
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $200
Built-in active PFC function, PF>0.9 for 75% of load or higherIP66 designProtections: Short circuit Over current Over voltage Over temperatureOther features:Universal AC input (up to 295VAC) Full rangeMeet 4kV surge immunity level (IEC61000-4-5)Class 2 power unitCooling by free air convectionSuitable for dry,damp and wet locationSuitable for LED lighting and moving sign applications3 years warranty
More Information
Manufacturer
Mean Well
Output Wattage (W)
60
Dimmable (Type)
No
Dimensions
183 x 62.5 x 40.5 (LxWxH) mm
EMC Standards
EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11, EN61547
Input Voltage
90~295VAC, 127~417VDC
Safety Standards
UL8750, UL879, TUV EN61347-1, EN61347-2-13, PSE J61347-1, J61347-2-13
Output Voltage Options
Single
Working Temperature
-30~+70°C
PDF Datasheet
CEN-60-SPEC.PDF
