Power factor capacitors for use in discharge lamp circuits.

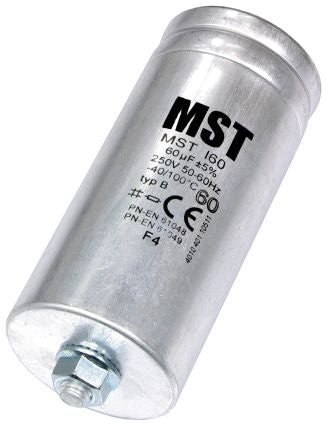

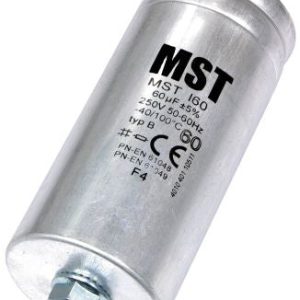

# image of 60MFD you will be supplied 100MFD
Main characteristics:
- Type B, aluminium housing
-
- Low inductance
- Push-in terminal (Wago 214 terminal) or cable (2×0,75mm²)
- Self-healing ability
- Overpressure safety break-action mechanism
- Discharge resistor
- Requirement a clearance of at least 10mm above
the terminals to ensure proper activation break action mechanism -
Technical data:
Parameter Value Tolerance of capacitance ±5% Rated frequency 50 60Hz Relative humidity in capacitor environment at 20÷25°C 75% (annual average)
95% (max value within 30 days)95% (max value within 30 days) Service life 30000h Condensation Not permitted Dissipation factor (tgd) ≤ 0,0015 at 50Hz 250V Dielectric strength: – between terminals 2U_N 50Hz – 2sec. – between terminals connected together and case 2kV 50Hz – 2sec Title Default Title
