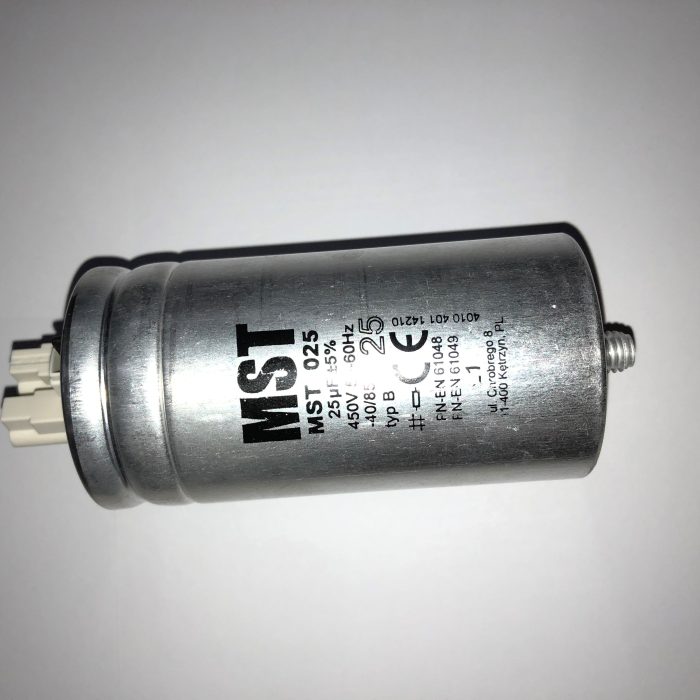

CA25MFD-L450 450v 25MFD Capacitor Stud Fixing Fashion

$8.30

26 people are viewing this right now
11 products sold in last 3 hours
Selling fast! Over 20 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

Power factor capacitors for use in discharge lamp circuits.

Main characteristics:

  • Type B, aluminium housing
  • Low inductance

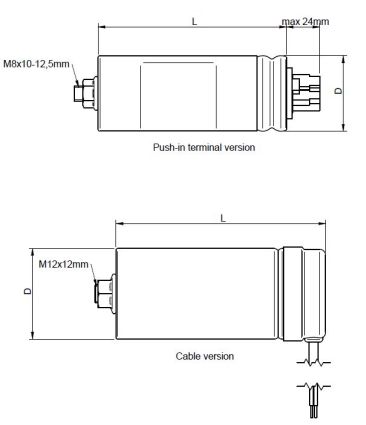

  • Push-in terminal (Wago 214 terminal) or cable (2×0,75mm²)
  • Self-healing ability
  • Overpressure safety break-action mechanism
  • Discharge resistor
  • Requirement a clearance of at least 10mm above
    the terminals to ensure proper activation break action mechanism

    • Technical data:

      Parameter

      		 Value
      Tolerance of capacitance

      		 ±5%
      Rated frequency

      		 50 60Hz
      Relative humidity in capacitor environment at 20÷25°C

      		 75% (annual average)
      95% (max value within 30 days)
      95% (max value within 30 days)
      Service life

      		 30000h
      Condensation

      		 Not permitted
      Dissipation factor (tgd)

      		 ≤ 0,0015 at 50Hz 250V
      Dielectric strength:
         – between terminals

      		 2U_N 50Hz – 2sec.
         – between terminals connected together and case

      		 2kV 50Hz – 2sec
