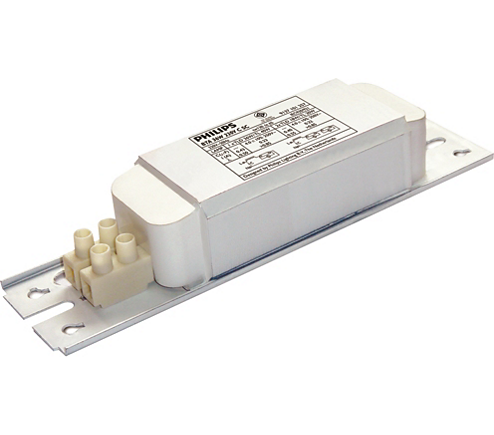

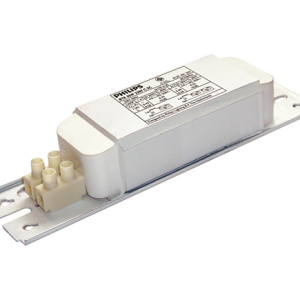

BTA 18W 230V C SC

Order code: 913710111750

Full Product Code: 871016303364830

Specifications

Similar to   L18A-l EC18A502K LN18.114 LN18I.319

General Information

Application Code
18W
Design
C
Operating and Electrical

Input Voltage
230 V
Input Frequency
50 Hz
Mains Voltage Performance (AC)
-8%-+6%
Mains Voltage Safety (AC)
-10%-+10%
Power Factor with PF Compensation
0.85
Power Factor without PF Compensation (Nom)
0.35
Power Losses (Nom)
9.0 W
Wiring

Wire Striplength
8.0 mm
Ballast Contact Wire Cross Section
0.50-1.00 mm²
Connector Type
Screw
System characteristics

Rated Ballast-Lamp Power
18 W

Temperature

T-Storage (Max)
80 °C
T-Storage (Min)
-40 °C
T-Winding (Max)
130 °C
Delta-T Normal Conditions
65 °C
Mechanical and Housing

Housing
L 155x39x28

Approval and Application

Energy Efficiency Index
C
Approval Marks
CE marking
Product Data

Full product code
871016303364830
Order product name
BTA 18W 230V C SC
EAN UPC – Product
8710163148632
Order code
913710111750
Numerator – Quantity Per Pack
1
Numerator – Packs per outer box
32
Material Nr. (12NC)
913710111750
Net Weight (Piece)
0.500 kg
