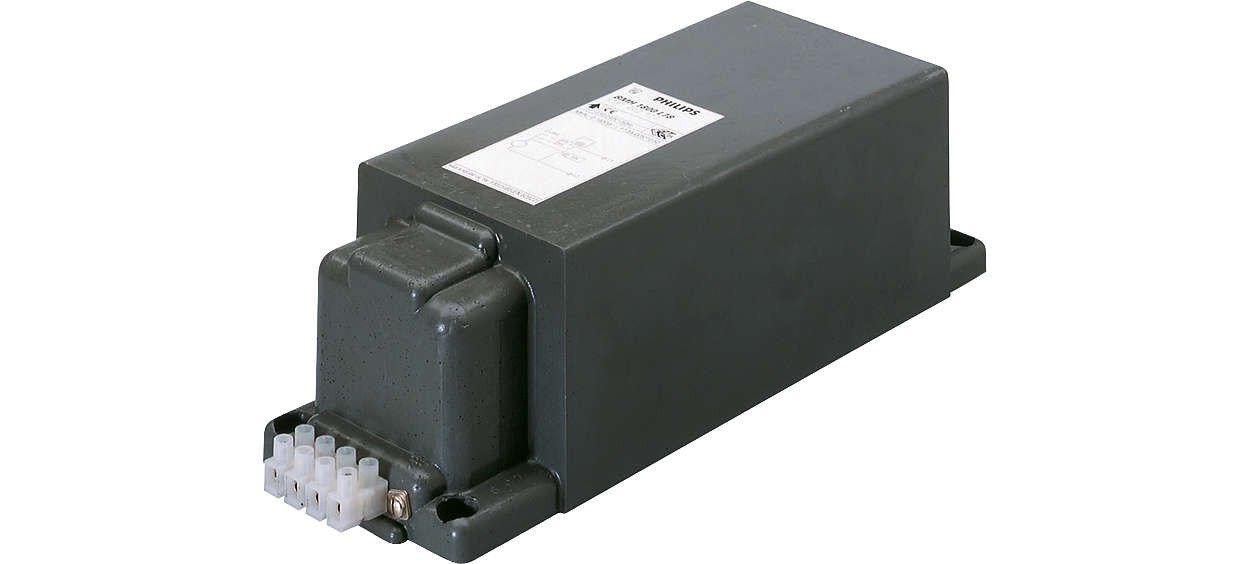

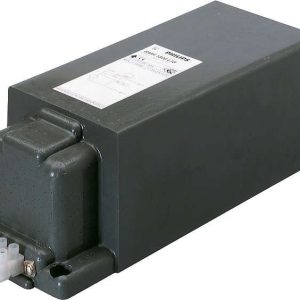

BHL2000-L76-PH 2000w 380 415v HPIT Ballast Cheap

$208.47

26 people are viewing this right now
11 products sold in last 7 hours
Selling fast! Over 11 people have this in their carts
  • Check Mark Estimated Delivery : Up to 4 business days
  • Check Mark Free Shipping & Returns : On all orders over $200
  • Visa Card
  • MasterCard
  • American Express
  • Discover Card
  • PayPal
  • Apple Pay
Guaranteed Safe And Secure Checkout

380 415v 2000w Ballast – BHL2000L76

Specifications

General Information

Remarks
UK importer address: Signify Commercial UK Limited, 3, Guildford Business Park, GU2 8XG
Application code
L76-A2
Design
HP-317
Lamp type
HPI
Number of lamps
1 piece unit
Operating and Electrical

Input Voltage
380 to 415 V
Input frequency
50 Hz
Input voltage (multi-tab)
380 400 415
Power factor 100% load (nom.)
0.87
Mains voltage performance (AC)
-8%-+6%
Mains voltage safety (AC)
-10%-+10%
Input current with PF correction
64.00 A
Input current without PF Correction
14.00 A
Power factor without PF compensation (nom.)
0.55
Power losses (nom.)
77.0 W
Wiring

Wire strip length
7.0 mm
Ballast contact wire cross section
0.70-6.00 mm²
Connector type
Screw
System characteristics

Rated ballast-lamp power
2000 W
Recommended ignitor
no ignitor for HPL-N for HPI-T ignitor SI54 (913619149966)
Temperature

T storage (max.)
80 °C
T storage (min.)
-25 °C
T-winding (max.)
130 °C
Delta-T normal conditions
70 °C
Approval and Application

Approval marks

CE marking

ENEC certificate

Product Data

Full product code
871150006384700
Order product name
BHL 2000 L76-A2 380 400 415V 50Hz HP-317
EAN UPC – product
8711500996664
Order code
06384700
Local order code
BHL2000L76
SAP numerator – quantity per pack
1
Numerator – packs per outer box
1
SAP material
913700217903
SAP net weight (piece)
17.000 kg
