BAG MST- MZN1000 2000S 1000-2000W IGNITOR 240V Cheap

1000-2000W IGNITOR

Description

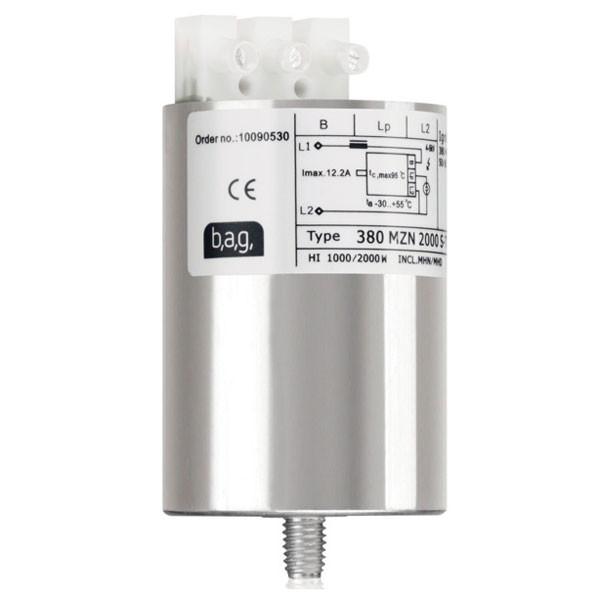

BAG MZN 1000 2000 IGNITOR

• Superimposed igniter for metal halide (HI) and high-pressure sodium vapour (HS) lamps

• Designed for long distances (up to 24 m) for a supply line capacity of 85 pF

• Not suitable for HQI-NDL WDL or HS-S- lamps (Super, Deluxe, Plus, Comfort)

•



  Type				MZN 1000 2000
  Article number				9070006
  Approved mains voltage		V		198 (207) … 264
  Approved mains frequency		Hz		50 (60)
  Max. continuous lamp current		A		10.3
  Connecting terminals		mm2		4
  Response cut-out voltage		V		≤198 (207) ≥170
  Ignition voltage		kV		3.0 … 5.0
  Timer ignition time		s		–
  Phase position		°el		50 … 90
  Pulses per cycle		–		≥1
  Approved load capacity		pF		750 … 2000
  Internal losses at 25°C ambient temperature		W		<6 (10.3 A) <2 (4.6 A)
  Rise in temperature at 25°C ambient temperature		K		<30 (10.3 A) <6 (4.6 A)
  Max. housing temperature tc		°C		95
  Approved ambient temperature ta		°C		(negative) 30 … + 60 (10.3 A) (negative) 30 … + 85 (4.6 A)
  Weight		kg		0.35
